PVC CNC Machining: Overcoming Common Defects, Pros and Cons, and Vs Other

For plastic products manufacturing, Polyvinyl Chloride (PVC) is widely specified for components in semiconductor processing equipment, medical devices, chemical handling systems, and electrical insulation due to its excellent corrosion resistance, dielectric properties, and cost-effectiveness.

However, sourcing high-precision parts made via PVC CNC machining can present distinct quality control challenges, such as burrs, warping (deformation), discoloration, and uneven surfaces. Furthermore, whether the engineering plastic PVC is suitable for a specific project requires comparative evaluation against other common plastics.

This article introduces the causes and solutions for burrs, warping, discoloration, and uneven surfaces in PVC CNC machining, outlines the advantages and disadvantages of PVC, and compares it with other plastics. Finally, a factory case study is presented demonstrating how a customer’s issues with PVC part warping and precision were resolved.

Why Choose CNC Machining for PVC?

When evaluating production processes for PVC parts, you may weigh the options between injection molding and CNC machining( or more other ways). But for high-precision, low-to-medium volume, or geometrically complex components, CNC machining is typically the preferred process for the following reasons:

• No Tooling Costs & Rapid PVC Prototyping: Compared to plastic injection molding, which requires high upfront tooling investments and weeks of mold lead time, CNC machining allows production to start directly from stock PVC sheets or rods. This significantly reduces the time-to-market for new PVC product iterations.

• Tight Tolerance Control on PVC: CNC machining can consistently maintain critical dimensions on PVC components within +/-0.02 mm. This precision is particularly crucial for thick-walled PVC parts, which are otherwise difficult to control in injection molding due to the material’s cooling shrinkage and tendency to form sink marks.

• Complex Internal Geometries in PVC Components: Many industrial fluid-handling and chemical applications require intricate internal flow channels, stepped holes, and precision threads machined into PVC. These complex features can be completed in a single setup using 3-axis, 4-axis, or 5-axis CNC milling, ensuring perfect alignment.

Applications for CNC PVC Parts

Here are a few of the examples:

• Semiconductor Industry: Acid and alkali-resistant manifolds, wafer carriers, and valve bodies in wet cleaning equipment.
• Medical Devices: Fluid distribution valve blocks and reagent analysis channels in diagnostic instruments.
• Chemical & Water Treatment:High-purity chemical delivery pipe joints, flanges, and mixer components.
• Electrical & Electronics: Insulation spacers, terminal boards, and protective enclosures in high-voltage environments.

Overcoming Common Defects in PVC CNC Machining

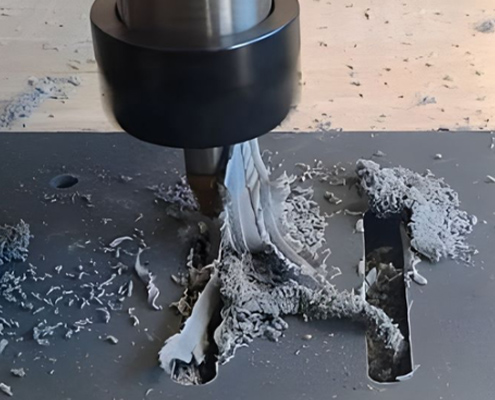

Burrs Defect Solving in PVC CNC Machining

The Root Cause

PVC is a relatively ductile polymer. If a manufacturing facility uses generic or slightly worn cutting tools, the tool edge fails to cleanly shear the material. Instead, the tool pushes and deforms the plastic, leaving heavy, tenacious burrs along part edges, intersecting holes, or tool exit paths.

Measures That Should Take:

• Mirror-Polished Solid Carbide Tooling: utilize specialized solid carbide tools with mirror-polished flutes designed specifically for plastics to minimize friction and maintain an extremely sharp cutting edge.

• Up-Cut Geometry: Single or twin-flute up-cut routers are ideal because they rapidly evacuate chips upward and away from the cut zone, preventing the material from tearing due to secondary chip recutting.

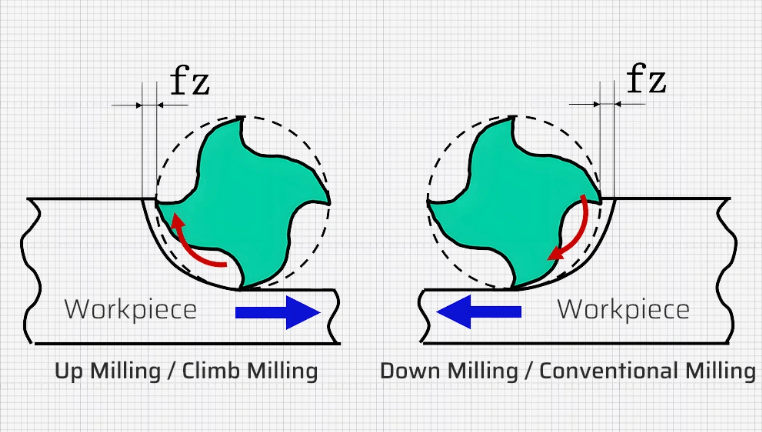

• Optimized Climb MillingStrategies: CNC programming should prioritize climb milling over conventional milling. This ensures the chip thickness drops to zero at the tool exit point, reducing exit-edge burr formation.

Warping and Deformation Solving in PVC CNC Machining

The Root Cause

PVC exhibits a high coefficient of thermal expansion combined with low thermal conductivity. Frictional heat generated during machining accumulates rapidly at the cutting interface rather than dissipating through the workpiece. This localized thermal concentration induces severe internal stresses. Once machining is complete and clamping forces are released, the part warps or twists to relieve these residual stresses, resulting in final dimensions that fall out of tolerance.

Measures That Should Take:

• Optimized Chip Load (Lower RPM, Higher Feed Rate):avoid high spindle speeds that induce excessive friction. Instead, lower the spindle speed and increase the feed rate. This ensures the tool shears off larger chips that physically carry the thermal energy away from the workpiece.

• Active Thermal Management: The machining setup must incorporate continuous high-pressure compressed air blasts or water-soluble flood coolant to stabilize the overall material temperature.

• Low-Stress Workholding: High-pressure hydraulic clamps can cause permanent mechanical deformation in PVC. It necessary to utilize vacuum tables, custom fixtures, or low-tack structural adhesives for thin-walled or large-surface-area components.

• Raw Material Annealing: For high-precision components, it must introduce an intermediate thermal aging/annealing process after rough machining to remove internal stresses built up during the extrusion of the raw stock sheets before proceeding to final finishing.

Discoloration and Burning Solving in PVC CNC Machining

The Root Cause

PVC is highly sensitive to temperature. When the temperature in the cutting zone exceeds its thermal degradation threshold (typically between 140°C and 160°C), the polymer undergoes rapid degradation. This manifests visually as a distinct yellow, brown, or charred surface. Beyond the cosmetic defect, overheating PVC liberates corrosive hydrochloric acid (HCl) gas, which degrades its mechanical performance and precision.

Measures That Should Take:

• Strict Avoiding Tool Dwell: When programming CAM toolpaths, continuous tool motion must be maintained. Any tool dwell or pause allows the spinning cutter to generate frictional heat within milliseconds.

• Efficient Chip Evacuation Design: Recutting trapped chips is a primary driver of localized melting and burning. High-pressure air streams must be directed precisely at the tool-material interface to ensure chips are cleared immediately upon generation.

Uneven Surfaces and Chatter Marks Solving in PVC CNC Machining

The Root Cause

A rough surface finish or visible chatter marks are typically caused by insufficient structural rigidity in the machining system. Because the rigidity of PVC is much lower than many materials(especially the metal), incorrect tool geometry or dull cutting edges cause cutting forces to multiply, leading to micro-vibrations (chatter) between the tool and the workpiece.

Measures That Should Take:

• Dedicated Tooling Policy: Cutting tools used for plastics must never be mixed with those used for metals. If tools that have previously cut aluminum or steel experience micro-edge wear( if mixed use, this can happen), which leads to surface tearing when reused on PVC.

• High Rake and Clearance Angles: Tools with aggressive positive rake angles cut the material with minimal resistance, effectively reducing cutting forces and removing chatter.

• Controlled Finishing Allowances: Leave a precise finishing stock allowance (0.2 mm to 0.5 mm) after roughing, executing the final pass at a moderated spindle speed and high feed rate to achieve an optimal surface finish.

Supplementary Table：Recommended Parameters for PVC CNC Machining

What are the Pros and Cons of PVC Plastic?

As an amorphous, high-performance polymer, PVC offers distinct industrial advantages, but it also presents specific material limitations.

Advantages

• Excellent Chemical Resistance: PVC is highly inert to most strong acids, alkalis, salts, and reducing agents, making it the preferred choice for handling corrosive fluids in chemical delivery and semiconductor wet cleaning equipment.

• Self-Extinguishing Properties: Containing a high percentage of chlorine, PVC features a very high Limiting Oxygen Index (LOI >= 45%). It is self-extinguishing in the absence of an external ignition source, satisfying strict fire safety regulations.

• Dielectric and Insulation Properties: Its high dielectric strength makes it a reliable structural insulation component in high-voltage electrical environments.

• High Rigidity and Mechanical Strength: At ambient temperatures, PVC possesses higher tensile strength and flexural modulus than most commodity polymers, such as polyethylene or polypropylene.

Limitations

• Low Continuous Service Temperature:The continuous service temperature of PVC is typically limited to under 60 degrees Celsius. Beyond this temperature, the material softens rapidly and loses its mechanical strength.

• High Thermal Sensitivity: This characteristic makes PVC highly prone to discoloration and degradation during machining, demanding strict temperature control from the machine shop.

• Low-Temperature Brittleness: In sub-zero or extremely low-temperature environments, the impact strength of PVC drops significantly, making it susceptible to cracking.

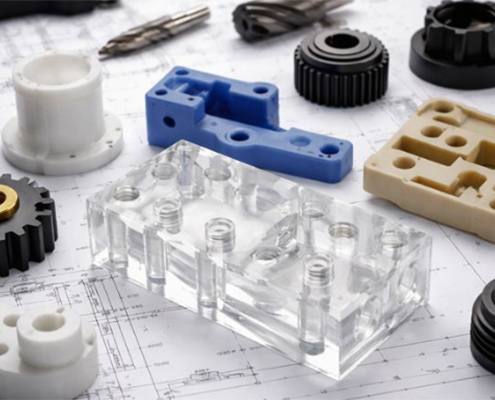

PVC vs ABS vs  PMMA vs PC vs HDPE: Engineering Plastics Comparison

You may weigh options between several common thermoplastics before finalizing the Bill of Materials (BOM). The table below compares the technical performance of PVC against four other mainstream CNC machined plastics to assist in making the most suitable engineering decision:

VMT Case Study: Precision Semiconductor PVC Manifold Block

A semiconductor equipment customer required a production run of custom PVC manifold blocks utilized for acid-delivery systems. The component featured intricate internal cross-drilled fluid channels and required stringent flatness tolerances on the primary sealing faces to guarantee system hermeticity.

The client’s previous manufacturing source delivered components with internal quality defects: the intersecting fluid channels were filled with extensive hanging burrs. And, due to unmanaged thermal stress during roughing, the blocks arrived with a 0.5 mm warp across the primary sealing face, causing assembly leakage during pressure testing. Minor yellow discoloration was also noted at the bottom of the deep-blind holes.

Solution

Upon taking over the project, our engineering team changed the manufacturing process:

• Introduction of Stress-Relieving Annealing: An intermediate 24-hour thermal stress-relief bake cycle was introduced between the rough machining and final precision-finishing operations.

• Tooling Configuration Upgrade: All multi-flute generic tools were replaced with specialized single-flute mirror-polished carbide end mills equipped with through-tool internal cooling.

• Scientific Parameter Optimization: Spindle speeds were reduced by 30%, feed rates were increased by 40%, and a continuous 6 Bar dry air blast was maintained precisely at the cutting zone throughout the process.

Results

Following process optimization, the surface roughness of all critical sealing faces reached Ra 0.8 um. The internal intersecting channels were completely free of burrs, and the overall part flatness was held within 0.05 mm (well exceeding the customer’s requirement limit of 0.1 mm). The batch successfully passed 100% of the pneumatic sealing and pressure validation tests.

Final Thought

Successfully executing PVC CNC machining relies on strict adherence to effective thermal management combined with optimized tool sharpness.

By controlling cutting temperatures through correct feed-to-speed ratios, specifying dedicated polished carbide tooling, and enforcing proper internal stress-relief management, product defects like burrs, warping, discoloration, and surface chatter can be consistently avoided.
