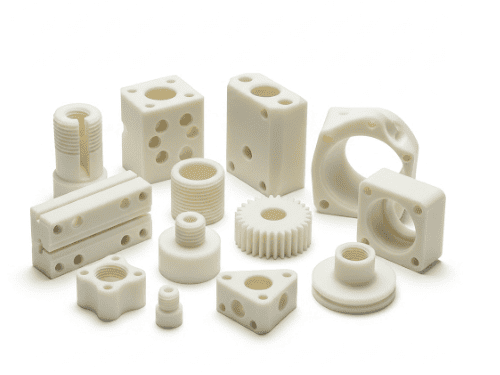

Custom PTFE (Teflon) CNC Machining Services

PTFE is renowned for its high and low temperature resistance, chemical resistance, excellent non-stick properties, and superior insulating properties, making it ideal for use in harsh environments.

VMT is a factory providing CNC machining for PTFE to customer drawings, from single prototypes to production runs. We can leverage PTFE’s ease of machining after sintering to create precise, complex parts. This can help you turn complex PTFE designs into working parts.

Tolerance down to ±0.01mm
Free DFM review before machining
Microscope deburring of fine edges
Ultrasonic cleaning for clean parts
No MOQ, single prototypes welcome

Request a Quote

ISO 9001 IATF 16949 Rohs Certification

Complete Quality Control Management Department

Production Yield Rate Reaches 99.98%

40 Materials/Finishes Choose

Assembly Sevices

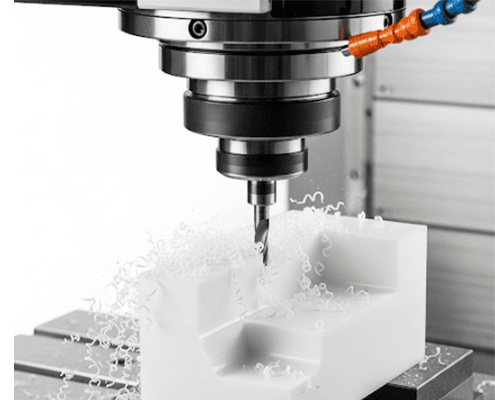

How Does VMT Control Deformation When Machining Soft PTFE?

PTFE is soft, so clamping and cutting forces can press a part out of shape, and the material can spring back after release. A part that measures correctly while clamped may no longer match the drawing once it is released.

Light, evenly spread clamping with proper support, so the part is held without being squeezed.
Sharp tools, light cuts and a separate finishing pass to keep cutting force low.
Critical dimensions checked after the part is released from the fixture, not only while it is held.

This helps your CNC machined PTFE parts fit correctly when they reach your assembly line.

Get a Quote

How Does VMT Manage Dimensional Change in PTFE Parts?

A PTFE part that reads in tolerance while warm can measure differently once it cools, because PTFE reacts strongly to temperature and the stock can hold stress. We deal with both at three points in the job.

While cutting: sharp tools, light cuts and coolant or air limit the heat that goes into the part.
Between operations: roughing and finishing are separate steps, which helps limit the effect of material stress on the final dimensions.
At inspection: parts are measured at a stable room temperature, not while still warm from cutting, so readings are consistent and easier to compare with your incoming inspection.

Get a Quote

How Does VMT Handle Burrs and Edge Quality on PTFE Parts?

PTFE tends to tear rather than cut cleanly, so burrs and fuzzy edges can appear on bores, grooves and outer edges. On parts that seal or mate with other components, those edges mean extra cleanup on your line or a poor fit.

We start at the cutting stage, with sharp tools and a light finishing pass that leaves a cleaner edge to begin with. Critical edges are then checked, and fine burrs that are hard to see with the naked eye are removed by deburring under a microscope, which helps parts arrive ready to assemble.

Get a Quote

Our PTFE CNC Machining Service

We specialize in precision CNC machining of PTFE , a material valued for its exceptional chemical resistance, extremely low friction, non-stick properties, and wide operating temperature range. By leveraging PTFE’s moldability before sintering and excellent machinability after sintering, we produce highly precise, complex components that meet the strict requirements of various industries. We offer a variety of PTFE grades, each designed to enhance specific performance characteristics. Selecting the appropriate grade ensures optimal results for your application.

Virgin PTFE

Pure PTFE with maximum chemical resistance, low friction, and excellent dielectric strength. It is ideal for high-purity, food contact, and medical applications where cleanliness and non-contamination are critical.

Mechanical Grade PTFE

Reprocessed PTFE with slightly lower purity but improved cost efficiency. Suitable for general-purpose industrial applications where extreme purity is not required.

Glass-Filled PTFE

Contains 15–25% glass fibers to significantly improve wear resistance, stiffness, and reduce deformation under load. Commonly used in seals, bearings, and components under continuous mechanical stress.

Carbon-Filled PTFE

Typically contains 25% carbon to enhance wear resistance, thermal conductivity, and dimensional stability. Performs well in high-load and high-temperature environments, such as pump parts and valve seats.

Bronze-Filled PTFE

Infused with 40–60% bronze powder to provide higher strength, improved dimensional stability, and excellent wear resistance. Well-suited for applications requiring high compressive strength and low deformation, like heavy-duty bearings and piston rings.

Graphite-Filled PTFE

Contains graphite to further reduce friction and improve wear performance while maintaining good chemical resistance. Ideal for dry-running applications and parts exposed to abrasive conditions.

PTFE Material Properties

PTFE is a high-performance polymer with excellent chemical resistance, low friction, and a wide operating temperature range. Below are its key physical and mechanical properties (typical values for virgin PTFE at 23°C, filled grades differ):

Property Category	Property	Description
Chemical	Chemical Resistance	Excellent resistance to most chemicals (acids, bases, solvents)
Chemical	Solvent Resistance	Insoluble in water and most organic solvents
Physical	Density	Approximately 2.2 g/cm³
	Water Absorption	Very low, practically non-absorbent
	Color	Milky white to translucent
Thermal	Operating Temperature Range	-200°C to +260°C
	Melting Point	Around 327°C
	Coefficient of Thermal Expansion	Relatively high, approx. 12-18 × 10⁻⁵ /°C
	Thermal Conductivity	Very low, approx. 0.25 W/m·K
Mechanical	Tensile Strength	Approximately 20-35 MPa
	Flexural Modulus	Low, roughly 350 to 650 MPa
	Elongation at Break	High, typically >200%
	Hardness (Shore D)	About 50-60
	Coefficient of Friction	Very low, around 0.05-0.10
Electrical	Dielectric Constant	Approximately 2.1
	Dielectric Strength	Depends on thickness: around 60 kV/mm in thin film, about 11 kV/mm at 3 mm
	Volume Resistivity	Very high, around 10¹⁸ Ω·cm

Get a Quote

Our PTFE CNC Machining Service

CNC Teflon machining, also called PTFE CNC machining, uses computer-controlled machines to cut and shape PTFE material precisely. This process allows the production of detailed and complex parts with very tight tolerances, which is important for many specialized industries.

We offer a wide range of CNC machining services to handle different types of projects, from simple pieces to complex assemblies. Our advanced equipment and skilled team work together to make sure every part is made accurately and efficiently.

Our services include CNC turning for round parts like shafts and bushings, CNC milling for flat or shaped surfaces such as housings and brackets, and advanced 3-axis or 5-axis machining that helps produce high-precision parts faster and with fewer setups.

CNC Turning

Helps keep diameters, bores and threads concentric on round PTFE parts like bushings, seals, rings and spacers turned from rod stock.

Get a Quote

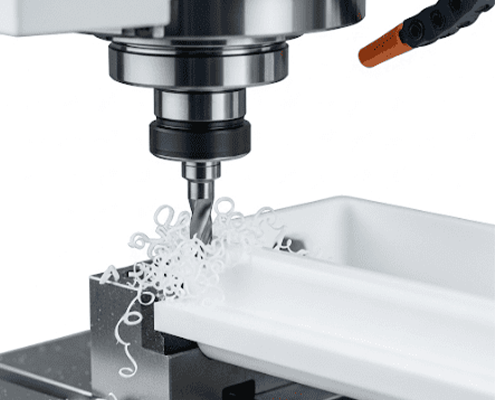

CNC Milling

Produces flats, pockets, grooves and holes that turning cannot, in PTFE plate and block for housings, covers and insulators.

Get a Quote

5-axis CNC Machining

Our PTFE 5-axis CNC machining services reach angled and compound features in fewer setups, so soft PTFE parts are clamped and repositioned less often.

Get a Quote

How Does VMT Finish and Clean PTFE Parts After Machining?

PTFE is not anodized, plated or painted the way metals are, so the surface on your part is the surface that comes off the tool. We use sharp tools, light finishing passes and controlled feeds to leave a smooth, consistent surface without smeared or pulled material, which helps on sealing faces, sliding surfaces and mating bores. PTFE also attracts dust and holds on to cutting residue, so finished parts are cleaned in an ultrasonic bath. This helps remove fine chips and residue from bores, grooves and blind holes that wiping does not reach. Parts are then packed to stay clean in transit, which suits assemblies for medical, semiconductor and fluid handling equipment.

Get a Quote

What Are Machined PTFE Parts Typically Used For?

PTFE parts are used wherever chemical resistance, low friction or electrical insulation is needed. Typical examples include:

Get a Quote

Chemical processing: Seals, gaskets, valve seats and pump components in equipment that handles acids, bases and solvents.
Electrical and electronics: Insulators, spacers and connector bodies that make use of PTFE’s dielectric properties.
Semiconductor: Wafer handling parts, insulators and fluid path components in process equipment that uses aggressive chemicals.
Medical and laboratory: Fluid path components, spacers and fittings in analytical, diagnostic and laboratory equipment.
Food and beverage: Seals, wear strips and guides in processing equipment, where PTFE’s non-stick and inert surface is useful.
Aerospace and automotive: Seals, bushings, spacers and insulating parts exposed to wide temperature ranges and fuels.
Industrial machinery: Bushings, bearings, wear strips and sliding parts that benefit from low friction.

Start Your PTFE Machining Project

VMT is a CNC machined PTFE parts factory with over 16 years of experience in CNC machining. We work with high-purity PTFE-Teflon materials for both prototyping and production, and each drawing is reviewed for manufacturability before cutting.

Whether you need PTFE seals, gaskets, insulators or custom-designed components, send us your drawing. We can help you review it for manufacturability and send a quote within 24 hours.

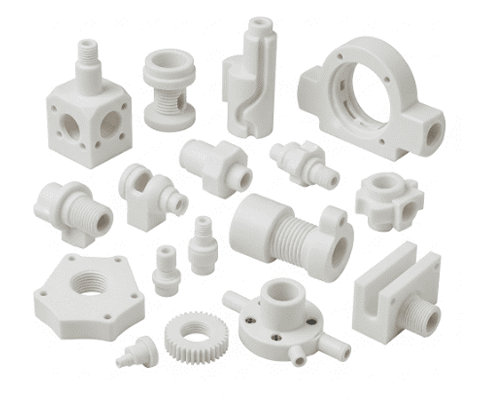

Custom machined white PTFE plates, discs and gears

How Does VMT Inspect PTFE Parts Before Shipping?

Soft PTFE needs inspection methods that do not change the size of the part being measured. Before parts leave our factory, these are the checks we run.

VMT quality inspection team measuring machined parts

Measuring Without Deforming the Part

PTFE is soft enough to be pressed out of shape by a hard contact gauge. We use light probe force or non-contact optical measurement on soft features, which helps keep the reading closer to the true part size.

Threads and Bores

Threads and bores are checked with go and no go gauges and pin gauges chosen to avoid scratching or pulling the surface. Critical bores are measured on a CMM where the drawing calls for it.

Surface and Edge Check

Each part is inspected for scratches, pulled material and remaining burrs before it is cleaned and packed. This helps catch cosmetic and edge issues that dimensional checks alone do not show.

Inspection Reports

Critical dimensions are recorded against your drawing, and a dimensional report can be provided with the shipment on request. This gives your incoming inspection team a record to compare against.

Get a Quote Read More

Our Other Plastic Machining Services

CNC Machining PTFE FAQs

What is PTFE?

PTFE is a synthetic fluoropolymer known for its excellent chemical resistance, low friction, and high thermal stability. It is widely used in non-stick cookware coatings, seals, gaskets, and electrical insulation due to its inertness and durability.

What are the Tips for Machining PTFE?

When machining PTFE, use sharp tools and maintain low cutting speeds to avoid melting. Secure the material firmly to reduce vibration and deformation. Consider cooling or chip removal to prevent heat buildup. PTFE’s softness allows easy machining, but its flexibility requires careful handling to ensure precision.

What are the Manufacturing Methods of PTFE?

PTFE is produced mainly through suspension polymerization. The raw polymer powder can be processed by sintering, compression molding, ram extrusion, or paste extrusion. Final shaping often involves machining due to PTFE’s high melting point and unique flow properties.

Is PTFE the same as Teflon?

Yes. Teflon is DuPont’s brand name for PTFE. Both refer to the same chemical material, but “Teflon” is a trademark commonly used to describe PTFE products, especially in consumer goods like non-stick cookware.

What are the advantages of CNC machining PTFE?

PTFE CNC machining can be a practical way to get precise parts from Teflon stock. The main advantages are:

Close tolerances: CNC machines cut complex shapes and detailed features to tight tolerances, which helps parts fit their intended applications.
Smooth surfaces: With sharp tools and light finishing passes, machined PTFE can have a smooth surface that helps reduce friction and wear on seals and bearings.
Prototype to batch: The same process covers a single prototype and larger production runs.
Complex designs: Multi-axis machines reach angled and compound features in fewer setups.
Material properties: Cutting does not change the material the way heating or molding can, so PTFE’s chemical resistance and thermal properties carry over to the finished part.
Efficient use of material: Parts are cut from rod, plate or tube sized to the drawing, which helps limit waste.

Does PTFE creep, and how does it affect part design?

Yes. Under constant load, especially at higher temperatures, PTFE slowly deforms over time, which is known as creep or cold flow. It matters most for parts that are clamped, preloaded or carry a sustained load, such as seals and gaskets. A few design choices can help:

Filled grade: Glass, carbon or bronze filled grades resist deformation better than virgin PTFE.
Larger bearing area: Spreading the clamping load over a bigger area lowers the stress on the material.
Support and retention: A groove, a metal backing or a retaining feature can help hold the part in position.
Expansion clearance: PTFE expands more than metals as temperature rises, so leave clearance in mating features.

Our engineers can review these points in the free DFM review before machining.

How do I choose the right PTFE grade?

Start with the main requirement of the part, then check what the filler gives up.

Purity and chemical resistance come first: Choose Virgin PTFE. It suits food contact, medical, semiconductor and strong chemical use.
Cost matters more than purity: Choose Mechanical Grade PTFE for general industrial parts where extreme purity is not required.
The part carries a sustained load: Choose Glass-Filled PTFE for seals and bearings, or Bronze-Filled PTFE where compressive strength matters most.
Wear and heat are both present: Choose Carbon-Filled PTFE for parts like pump parts and valve seats.
Friction is the priority, or the part runs dry or in abrasive conditions: Choose Graphite-Filled PTFE.

Fillers improve strength and wear, but they can reduce chemical resistance and purity, and carbon, graphite and bronze make the material conductive. Check this against the media and any insulation requirement before you decide. If you are not sure, send us your drawing and operating conditions, and we can suggest a grade during the free DFM review.

Get Your PTFE CNC Machining
Project Started Today

With a range of finishing services to choose from and guaranteed quality thanks to our inspection services you can trust you will receive great parts every time. Once you send us your 3D CAD file, one of our customer service engineers will check your design for manufacturability to ensure that the part can be made to your expectations and budget requirements. Contact us today for a free quote!

Get a Quote
