Polypropylene resists chemical exposure and fatigue from repeated flexing, making it the material of choice for snap-fit enclosures, chemical containers, and living hinges. VMT specializes in polypropylene CNC machining, helping engineers turn PP designs into parts that hold their shape and tolerance in real use, not just at inspection.

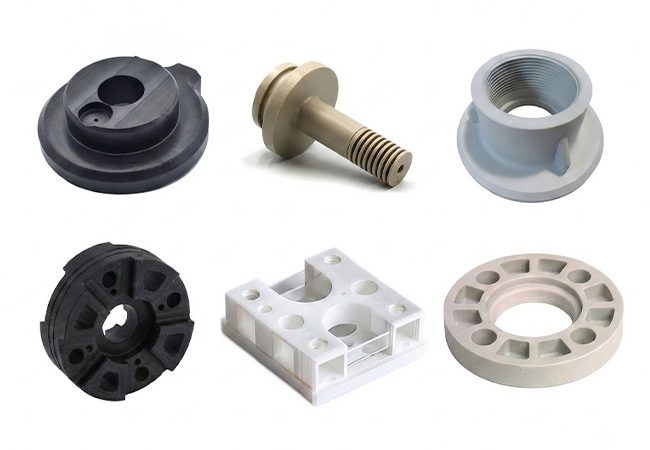

From chemical processing and fluid handling to packaging and consumer products, we machine CNC polypropylene parts to your drawings across a wide range of industries and applications. Below is a sample of the work we have completed for our clients.

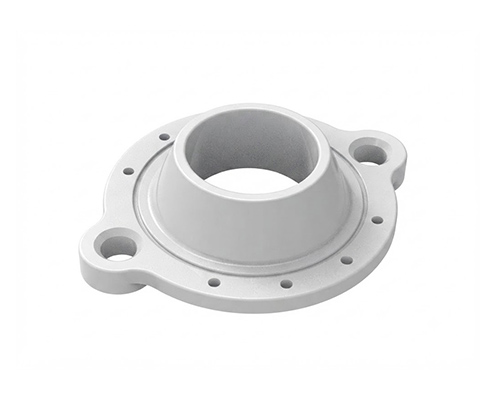

Machined from solid PP with precision bored center hole and symmetrical mounting holes for secure flange assembly.

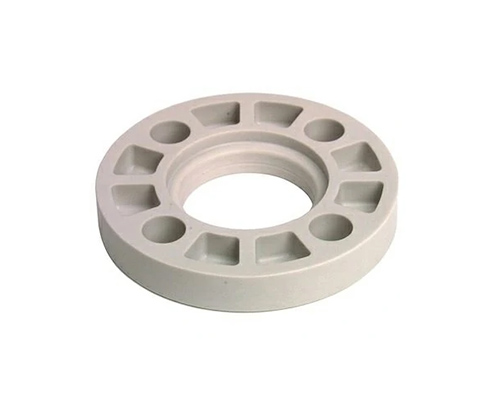

Evenly spaced pockets reduce weight while keeping the ring dimensionally stable under repeated handling.

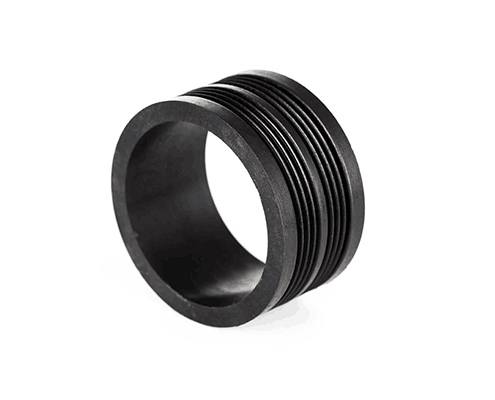

Precision cut external threads deliver consistent engagement for repeated assembly and disassembly cycles.

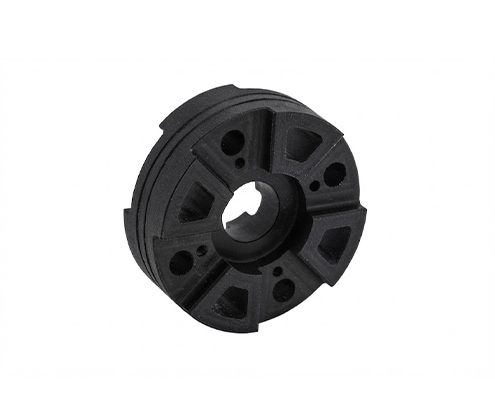

Center bore with keyway aligns to a drive shaft, while radial slots reduce weight without sacrificing rigidity.

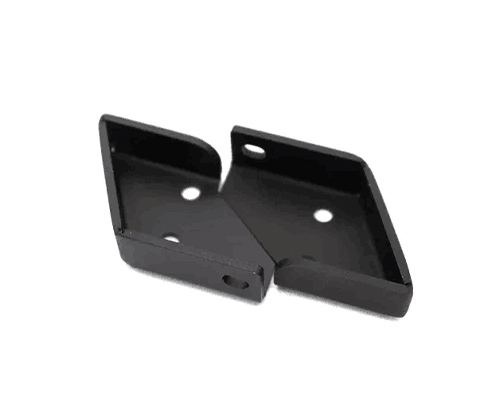

Matched pair of angled brackets with aligned mounting holes for secure, repeatable hinge assembly.

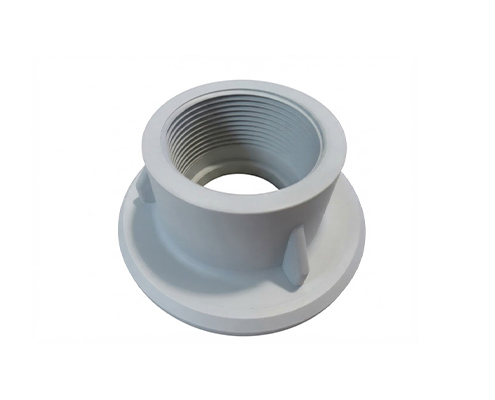

Internal threads and a wide base flange provide a secure, leak resistant connection point for tank or pipe fittings.
Precision machined wear pads for chain guidance systems, designed to absorb impact and reduce noise in conveyor and drive applications.

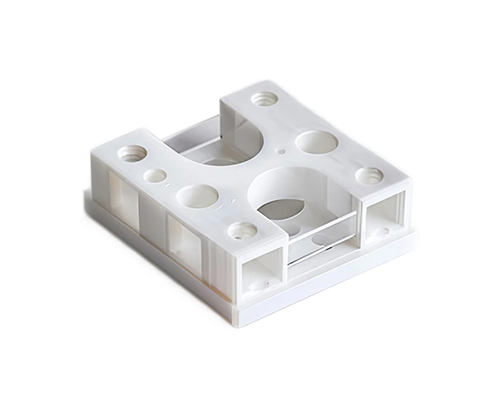

Milled housing components with tight dimensional tolerances, used in mechanical assemblies requiring electrical insulation and lightweight
Internal threads and a wide base flange provide a secure, leak resistant connection point for tank or pipe fittings.
Moisture absorption is a material property you cannot machine away, but you can design and prepare around it. Here is how we handle it:
| Capability | Details |
|---|---|
| Process | CNC Milling, CNC Turning, 5-Axis Machining |
| Available PP Grades | PP Black, PP White, PP+GF30 (Glass-Filled) |
| Lead Time | 7–14 business days |
| Tolerances | ±0.005″ |
| Wall Thickness | 0.8 mm minimum |
| Max Part Size | 1200 x 500 x 150 mm |
| MOQ | No MOQ |
| Post Machining | Deburring, Stress Relief / Annealing |
| Surface Treatment | Sandblasting, Polishing, Painting, Printing |
| Inspection | CMM Inspection |
| Tensile Strength | Elongation at Break | Hardness | Heat Deflection Temperature | Melting Point |
|---|---|---|---|---|
25–35 MPa | 200–600% | 95 (Rockwell R) | 90–110°C | 160–170°C |
Not all polypropylene CNC machining projects call for the same grade. Below is a quick guide to help you match the right PP grade to your part’s application and performance needs.

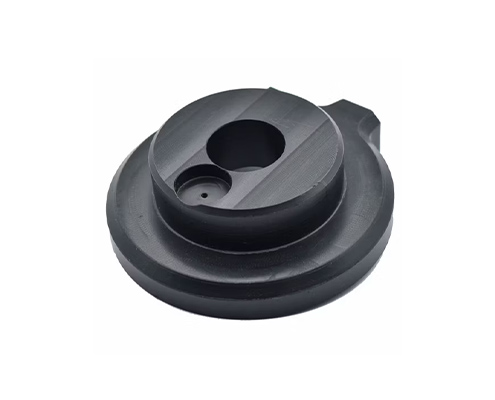

A cost effective general purpose grade, well suited for housings, fittings, and components where color is not critical. Reliable chemical resistance for everyday industrial use.

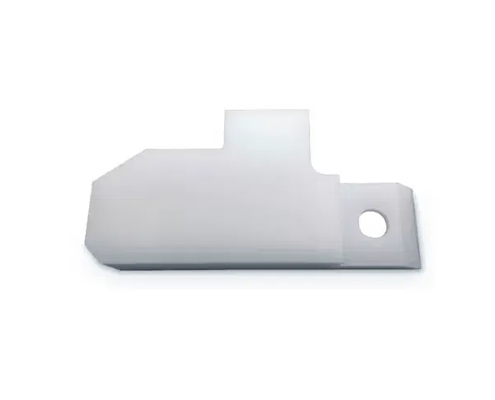

Same core properties as PP Black, chosen when appearance, cleanliness, or color coding matters. Common in food handling and consumer facing parts.

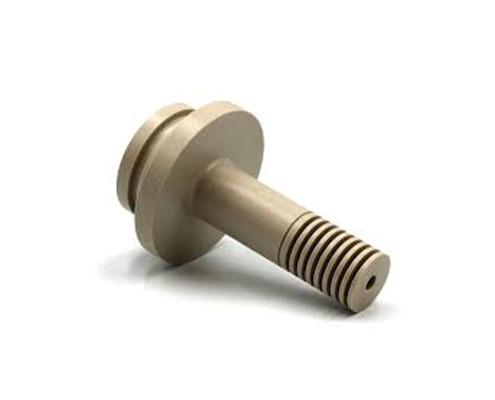

Reinforced with 30% glass fiber for higher stiffness and lower creep. Recommended for parts under sustained load or where dimensional stability matters most.

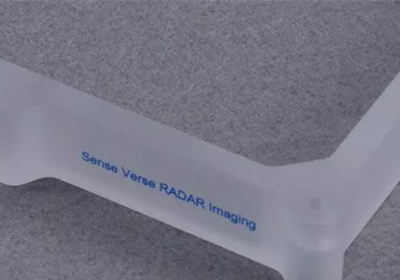

While polypropylene is often left as machined, several surface treatments can improve appearance, texture, or performance depending on your application. Here are the finishing options we offer for CNC PP parts.
Before we cut your first part, our engineers review your drawing for a free DFM check. Here is what we look at.
Send us your drawing, and we will get back to you with feedback before your part goes into production.
Every polypropylene CNC machining order goes through a documented inspection process, backed by internationally recognized certifications.

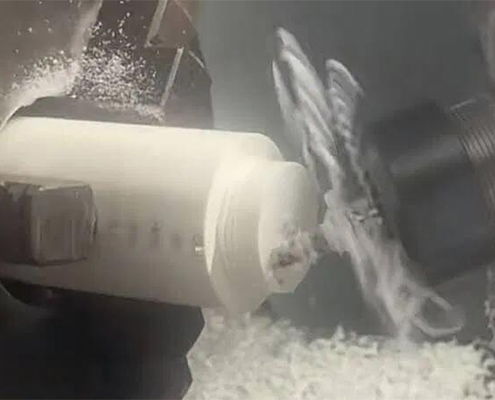

PP is soft, low melting, and prone to warping under cutting heat or clamping pressure, so we check for these specific risks at every stage:
Beyond quality management, we hold additional certifications relevant to specific PP applications and industry requirements.
Will PP parts degrade under prolonged UV or outdoor exposure?
Yes, unmodified PP will fade, chalk, and lose impact strength under prolonged UV exposure. If your part will be used outdoors or near direct sunlight, we can recommend a UV stabilized PP grade to extend service life, or apply a protective coating depending on your application.
What is the maximum operating temperature for PP parts?
Standard PP typically softens around 90 to 110°C under load, so it is not suited for high heat applications. If your part will see elevated temperatures, let us know during design review so we can recommend a grade or alternative material suited to your thermal requirements.
What is the typical lead time for polypropylene CNC machining orders?
Most polypropylene CNC machining orders ship within 7 to 14 business days, depending on part complexity and quantity. Rush options may be available for time sensitive projects. Contact us with your drawing for a specific timeline based on your part.
Is there a minimum order quantity for custom PP parts?
No, we accept orders for polypropylene custom parts starting from a single prototype up to full production volumes. Whether you need one part to validate a design or thousands for a production run, there is no MOQ requirement.
What is the difference between PP homopolymer and glass filled PP?
Standard PP homopolymer offers good chemical resistance and flexibility at lower cost, suited for general purpose parts. Glass filled PP trades some flexibility for higher stiffness and reduced creep, making it a better fit for parts under sustained load.
Can PP parts be color matched or dyed?
We commonly machine PP in black and white stock. Custom color matching depends on material availability and order volume, so reach out with your requirement and we can confirm feasibility and lead time for your CNC PP project.
Yes, this is a common concern in mixed material assemblies. Polypropylene has a much higher coefficient of thermal expansion than metal, often five to seven times greater depending on the grade. As temperature rises and falls, a PP part will expand and contract far more than the metal fastener, insert, or housing it is paired with.
Over repeated temperature cycles, this mismatch can gradually loosen press fit inserts, reduce clamping force on threaded fasteners, or open small gaps in sealing surfaces that were originally designed to be compressed tight. The risk is highest in applications with wide daily temperature swings, such as outdoor equipment, or in processes involving heat, such as sterilization or hot water exposure.
When you request design support, our team can recommend adjustments to interference fits, boss dimensions, and clearance around metal inserts to account for expected thermal movement, helping your assembly hold up through its expected temperature range rather than loosening after a few cycles in service.
Polypropylene has a reputation for strong chemical resistance, and in most cases that reputation holds up well against acids, bases, alcohols, and many common solvents. This is one of the main reasons engineers choose PP for tanks, fittings, and components in chemical processing and fluid handling applications.
That said, chemical resistance is not unconditional. PP performs poorly against certain aromatic and chlorinated hydrocarbons, strong oxidizers, and some concentrated solvents, where it can swell, soften, or turn white at the point of contact. The exact outcome depends on concentration, temperature, and exposure duration, so a chemical that PP handles fine at room temperature may behave differently at elevated temperatures or with prolonged contact.
Because of this, we always recommend confirming your specific media against PP compatibility data before finalizing your material choice, rather than relying on a general label of chemical resistance. When you share the chemicals your part will contact, our team can help you evaluate whether standard PP is suitable or whether a different grade would hold up better for your CNC PP application.
Upon receiving your 3D CAD file, our dedicated customer service engineer will thoroughly review your design for manufacturability, ensuring it meets your precise specifications and budget requirements. Contact us today for a free quote!
