Plastic Extrusion: A Complete Guide to Process, Materials, Design, and Selection

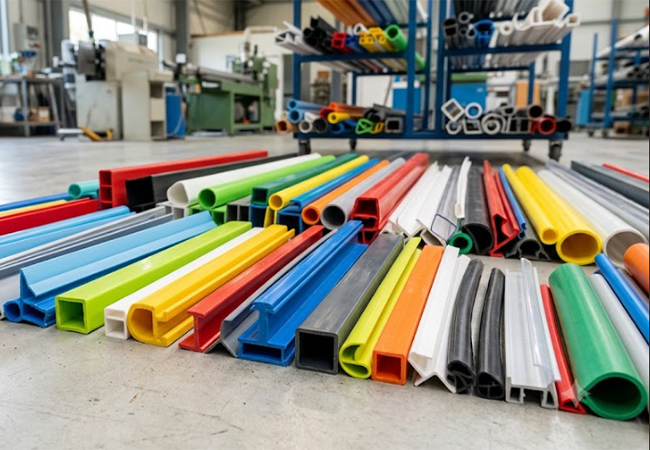

If your part has a “constant cross-section along its length”, such as pipes, wire ducts, sealing strips, or protective sleeves—then plastic extrusion molding is currently one of the most economical methods for continuous production. Since its industrialization in 1935, this process has accounted for the majority of the world’s capacity for thermoplastic pipes, films, and profiles.

This article will systematically break down the process, materials, design essentials, and selection decisions of plastic extrusion molding. Additionally, it concludes with an introduction to the key differences between plastic extrusion and plastic CNC machining, helping you choose the right process route right at the project initiation stage.

What This Guide Covers

• The process principle behind plastic extrusion and its key equipment
• The most common thermoplastics used in extrusion and their typical applications
• When to specify extrusion and when to specify CNC machining
• The DFM traps to avoid at the design stage
• The order-of-magnitude cost, lifespan, and lead time for extruded parts

1. What Is Plastic Extrusion

Plastic extrusion is a continuous thermoplastic forming process. Solid plastic resin like pellet or powder, is fed into the barrel of an extruder, where a rotating screw combined with external heater bands melts and homogenizes the material. The molten polymer is then pressurized by the screw and forced through a shaped die at the front of the machine. The die’s cross-section determines the cross-section of the continuous profile leaving it. The profile moves immediately into a cooling and sizing section (typically water-cooled or vacuum-calibrated), is pulled downstream at constant speed by a haul-off, and is finally cut to length by an in-line saw.

The core value of this line is straightforward: once the die is cut, the extruder can produce a uniform profile around the clock. It is therefore the natural fit for any part whose cross-section does not change along its length and whose volume justifies the die investment.

In the broader forming landscape, extrusion sits alongside injection molding and blow molding as one of the three dominant thermoplastic processes. Where injection molding and blow molding produces closed three-dimensional parts in cycles(solid and hollow parts, respectively), extrusion produces continuous two-dimensional cross-sections — finished products are typically created downstream through cutting, welding, bending, or secondary machining.

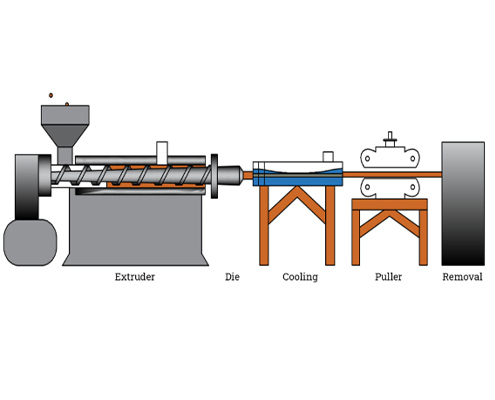

2. The Plastic Extrusion Process Step by Step

A complete extrusion line breaks into seven core stages. Each stage has parameters that directly drive the quality and consistency of the finished part.

Stage one — feedstock handling and drying. Thermoplastic resin is loaded into the extruder hopper. Hygroscopic materials (PA, PC, PET, ABS) must be dried to below 0.02% moisture before entering the barrel, otherwise the residual water flashes inside the heated barrel and produces bubbles, silver streaks, or internal voids in the profile.

Stage two — melting and homogenization. Inside the barrel, the resin is conveyed by the screw and heated by external band heaters (PID-controlled in multiple zones) plus the shear heat generated by the screw itself. Barrel temperatures typically run 200–275°C, and screw speeds 30–120 rpm. The output of this stage is a uniform melt with no unmelted particles.

Stage three — metering and filtration. In the metering section of the screw, the melt is pressurized to 5–35 MPa and forced through a breaker plate and screen pack, which filter out contaminants and any residual solids. Melt pressure and temperature at this point are the primary feedback signals used to control the line.

Stage four — die forming. The filtered melt enters the die. The die’s cross-section geometry directly defines the profile’s cross-section. The die land — the parallel section between the die body and the die exit — is critical: it sets the final surface quality, and the flow channels inside the die are usually polished to below Ra 0.4 µm to avoid hang-up and surface drag.

Stage five — calibration and cooling. On leaving the die, the profile enters a vacuum calibration sleeve or a water-cooling trough. External cooling and the geometric constraint of the calibrator solidify the profile while holding its shape. This stage controls the final dimensional accuracy and the distribution of residual stress; uneven cooling translates directly into warpage and dimensional drift downstream.

Stage six — haul-off and cutting. A haul-off unit pulls the solidified profile through the line at a speed tightly matched to the extrusion rate. An in-line saw (fly-cutter or fixed-length cutter) then cuts it to length. Any mismatch between haul-off speed and extrusion rate immediately shows up as wall-thickness variation.

Stage seven — inspection and post-processing. The cut lengths move to an inspection station for appearance checks, wall-thickness measurement, density, tensile strength, and other in-process tests. Parts that require downstream operations , such as printing, welding, machining, drilling, are moved on to those secondary operations.

3. Single-Screw vs Twin-Screw Extruders: Which is Good for Your Parts ?

Extruders are typically classified by screw configuration into two families, with very different roles.

Simply put, if your part is made from a nominal formulation of a single material (such as standard PE water pipes or PVC cable trunks), a single-screw extruder is sufficient. However, if the formulation contains large amounts of fillers, color masterbatches, glass fibers, or flame retardants, or if the process requires reactive extrusion (such as direct extrusion from PVC powder) or devolatilization and venting, a twin-screw extruder is the safer and more reliable choice. Otherwise, a single-screw extruder often fails to disperse these components uniformly, leading to fluctuations in the profile’s performance.

4.Common Material Options that You can Choose

A wide range of thermoplastics can be extruded, but industrial practice concentrates on eight materials. The table below summarizes these materials’ key properties, typical extrusion applications, and/vs. how each behaves when machined on a CNC.

5.Where Can You Find the Plastic Extrusion Applications?

Plastic extrusion touches nearly every modern industry. The most representative application areas are summarized below.

Construction and infrastructure

PVC drainage and water pipe, PE gas pipe, PPR hot/cold water pipe, plastic raceways, window and door seals, baseboards — these products absorb the largest share of global extrusion capacity. They share a common profile: high volume, uniform cross-section, long service life.

Packaging

PE cling film, PP strapping, PVC shrink film, PET food-grade film — these film products are produced by blown-film extrusion lines, where output volume is high and unit cost is low.

Automotive

Window seals, bumper trim, fuel lines, wire harness sleeves, instrument panel beams — these parts are produced in volume by extrusion, and the automotive industry holds tight requirements on profile consistency and surface quality.

Electronics and electrical

PVC raceways, PVC flame-retardant sleeves, PE telecom cable jackets, PA corrugated conduit — these parts require electrical insulation, flame retardance, and ease of wire pulling and bending.

Medical devices

PVC IV tubing, PE drainage tubing, TPU catheter tubing, PVC blood-bag tubing — medical-grade extrusion has specific requirements on material biocompatibility, outgassing, and sterilization tolerance, and is normally run in cleanroom conditions.

Industrial equipment

Nylon rod, UHMW PE guide rails, PA conveyor belts, ABS decorative trim — these industrial parts are often produced as extruded blanks and then finished to spec by CNC machining.

6.Extrusion vs CNC Machining of Plastics: Which is Better?

If you are unsure whether plastic CNC machining or plastic extrusion is the better fit for your project, the comparison below provides a direct answer.

First: is the cross-section uniform? If the part’s cross-section is identical along its length (tube, strip, raceway, sleeve), extrusion wins decisively on throughput and unit cost. If the part is three-dimensional, has internal cavities, or varies in cross-section along its length, CNC machining is the more direct route.

Second: what are the volume and tolerance? For high volume (tens of thousands per year and up) with relatively loose tolerances (±0.1 mm or wider), extrusion’s unit cost can be driven very low. For low-to-medium volume (50 to 5,000 parts per year) with tight tolerances (within ±0.05 mm) and complex three-dimensional geometry, CNC machining skips the die cost and is often faster and cheaper in total.

A side-by-side view of the key dimensions:

7. Top DFM Tips for the Plastic Extruded Parts

Whether the eventual process is extrusion or CNC machining, good part design cuts scrap rate and unit cost sharply. The four DFM principles below apply to the plastic extruded parts.

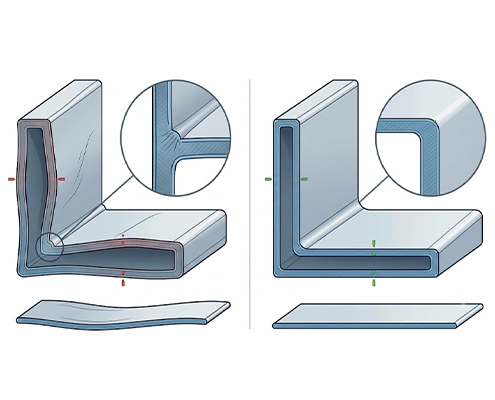

Uniform Wall Thickness

Uneven wall thickness causes thick sections to cool slower than thin sections, producing warpage, sink marks, and concentrated internal stress. The goal is to keep wall-thickness variation within ±25% and avoid abrupt transitions.

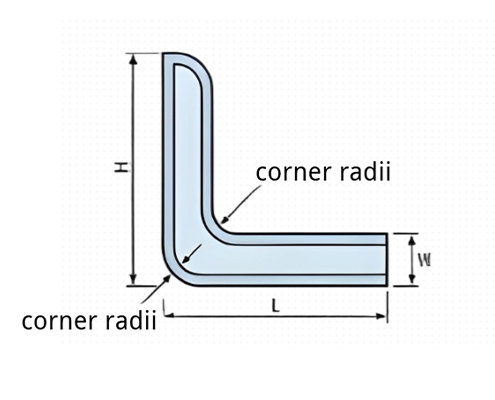

Add Corner Radii

Sharp corners concentrate stress and accelerate die wear. Internal radii below 0.4 mm (0.016 in) cause uneven melt velocity at the die corners and show up as flow lines or underfill on the profile surface.

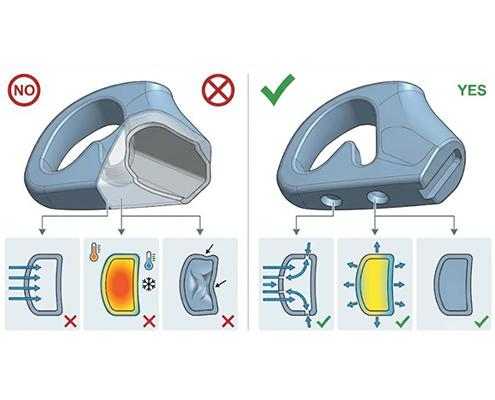

Avoid Enclosed Hollows

Unless required, do not design fully enclosed internal cavities. The interior of an enclosed cavity cannot be reached by external cooling water; the melt inside stays hot and soft for longer, and the section is prone to collapse or distortion. If a cavity is required, leave vent holes or machine openings in a downstream operation.

Keep Tolerances Realistic

Do not specify extrusion tolerances tighter than the process can deliver. ±0.05 mm is already near the limit for extrusion, while the same tolerance is comfortable for CNC machining. Critical mating features can be finished by CNC secondary fininshing, while the profile body itself is held to the realistic extrusion envelope.

8. Advantages and Limitations of Plastic Extrusion

Pros

• Continuous production is the headline — once the die is cut, the line runs around the clock and output per hour dwarfs injection molding and CNC.
• Material utilization is high: nearly all resin that enters the barrel exits as product, and edge trim can be reground and fed back.
• Profile cross-section can be highly complex — a well-designed die produces intricate custom profiles in a single pass. Unit cost at volume is low;
• commodity pipe and film can drop to a few cents per part.

And Cons

• Closed three-dimensional parts are simply not producible — the geometry must be uniform along the length.
• Tooling cost is high: a precision extrusion die runs from a few tens of thousands to several hundreds of thousands of dollars, which does not amortize at low volume.
• Start-up losses are unavoidable — every die change or recipe adjustment requires a ramp-up period with elevated scrap.
• Material range is constrained — high-performance engineering plastics such as PEEK, PTFE, and PPS have melt viscosities too high for conventional extrusion.
• And cooling-induced distortion is never fully avoided — long profiles inevitably pick up a small bow or twist during cooling and usually need a downstream straightening operation.

9. Considerations about Cost, Lifespan, and Lead Time

Cost
Extrusion unit cost scales inversely and sharply with volume. As annual volume moves from 10,000 parts to 1,000,000 parts, unit cost can fall by an order of magnitude. The extrusion line itself runs from USD 7,000 to USD 90,000; the die from a few hundred to USD 15,000. For commodity PE or PVC pipe, unit cost can be measured in cents.

Lifespan
Service life varies enormously with application. Commodity packaging film may be discarded in under a year; PVC water and drainage pipe can run 50 years and beyond; UHMW PE industrial guide rails typically last 10 years or more. Lifespan assessment must therefore be tied to the actual service environment — temperature, UV exposure, chemical media, and mechanical load.

Lead time
Standing up a new extrusion line from die build to stable production typically takes 4–8 weeks. If the project is the first contact with extrusion, allow sufficient buffer at project kickoff for die build and trial production.

10.How to Choose from Plastic Extrusion, CNC Machining, or Injection Molding?

A simple decision framework is shown in the following, you can run through the questions to determine.

• First — look at the cross-section.Is the cross-section identical along the length? Yes → plastic extrusion. No → second question.
• Second — look at the volume.Annual volume above 10,000 parts? Yes → injection molding (suited to closed three-dimensional parts) or the plastic extrusion. No → third question.
• Third — look at the tolerance.Tolerance requirement within ±0.05 mm? Yes → CNC machining. No → fourth question.
• Fourth — look at the material.Is the material hard to extrude — PEEK, PTFE, Vespel, or similar? Yes → CNC machining. No → return to extrusion and re-evaluate.

VMT CNC Machining Factory Case: PEEK Valve Seats Solved by CNC Machining

A Tier-1 semiconductor equipment OEM was developing the next generation of wet-etch tools and required 200 PEEK valve-seat prototypes. The part sits between the process gas line and the chamber and serves both sealing and gas-distribution functions.

The core difficulties.

• First, PEEK melt viscosity is very high (melt index typically below 5 g/10 min), so conventional extrusion is not an option.
• Second, the sealing face required flatness ≤ 0.01 mm and surface roughness Ra ≤ 0.2 µm — turning alone could not hold both at the same time.
• Third, a 200-piece batch falls well below the economic threshold for either an extrusion die or an injection mold, so opening tooling did not make sense.

The solution.

• Our engineering team reviewed the print and built a three-step route.
• Step one, machine the outer profile, internal flow channels, and sealing face in a single setup on a Hermle C 250 U 5-axis VMC, using vacuum-grade Victrex 450G PEEK rod as the starting stock.
• Step two, finish the sealing face by single-point diamond turning (SPDT), driving Ra directly to 0.15 µm and holding flatness within 0.008 mm.
• Step three, vacuum-bake every part at 150°C for 24 hours, then double-bag in Class 1000 cleanroom with nitrogen purge to keep outgassing under control in the downstream vacuum environment.

The result.
All 200 PEEK valve seats shipped within three weeks, and every critical dimension passed incoming inspection on the first try. Sealing-face flatness measured 0.008 mm (against ≤ 0.01 mm required), Ra 0.15 µm (against ≤ 0.2 µm required), and bake-out data came in at TML 0.7% and CVCM 0.05% — both better than the NASA ASTM E595 standard. The customer moved VMT onto the preferred-supplier list for the next platform.

Final Thought

Plastic extrusion is the workhorse of thermoplastic processing — its cost advantage at volume, on uniform cross-sections, with long service life, is not easily matched. But when the project calls for low volume, tight tolerance, three-dimensional geometry, or hard-to-extrude materials such as PEEK and PTFE, CNC machining is often the more economical and more flexible route.
