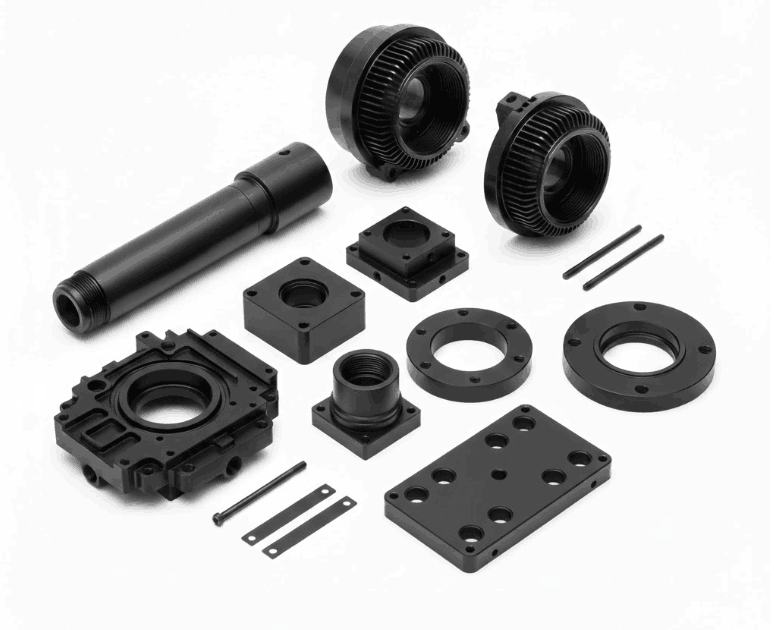

With 15 years of manufacturing experience, we translate precise optical designs into practical, high-performance components. Advanced CNC machining techniques combined with expert surface treatment processes support a wide range of spectrometer parts, from prototypes to mass production.
VMT has successfully partnered with over 150 specialized optical instrumentation companies to bring their complex designs to life. To date, we have manufactured and delivered more than 50,000 precision optical components, including over 3,000 high-precision spectrometer components.
Our experience covers a wide range of applications, producing mass spectrometer components, Raman spectrometer components, UV-Vis spectrometer components, and components of FTIR spectrometer. This extensive expertise ensures we meet tight tolerances and complex design requirements for advanced optical system
VMT offers a comprehensive range of manufacturing services, including 3D printing, sheet metal fabrication, die casting, and extrusion molding, enabling us to support every stage of your spectrometer manufacturing process and ensure consistent quality from prototyping to mass production.
Leverage advanced 3- and 5-axis rapid machining technologies to achieve precision tolerances as tight as ±0.005 mm. With streamlined operations, we offer delivery times as fast as 1 day.
Die casting with precision prototype molds and customized process optimization ensures high-quality parts and reduced processing costs to meet different customer requirements.
Laser cutting, bending, stamping, spinning, punching, welding, etc. From various cutting tools to different manufacturing equipment, we can produce a large range of sheet metal. Tolerances as low as ±0.004 mm.
We manufacture 3D printed parts at very competitive prices. The materials we offer include metals and plastics such as aluminum alloy, stainless steel, steel, copper, ABS, PA, SLA, and SLS, etc.
Common materials for spectrometer CNC components include aluminum alloys, stainless steel, titanium, and engineering plastics. Aluminum is lightweight, strong, and easily machinable; stainless steel offers durability and corrosion resistance; titanium provides high strength and thermal stability for critical parts; and engineering plastics are used for holders or non-load-bearing components due to low friction and chemical resistance.
| Material | Grade / Alloy | Reason for Use | Typical Components |
|---|---|---|---|
| Aluminum | 6061, 6063 | Lightweight, strong, good machinability, thermal stability | Lens housings, optical mounts, structural frames |

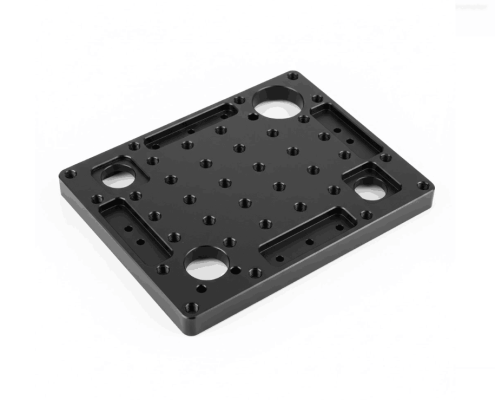

| Stainless Steel | 304, 316 | High corrosion resistance, durable, dimensional stability | Optical bases, mounting plates, alignment brackets |
| Titanium | Ti-6Al-4V | High strength-to-weight ratio, excellent thermal stability | High-precision optical holders, extreme environment parts |

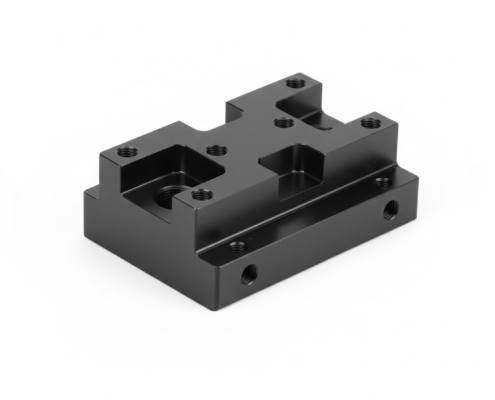

| Engineering Plastics | PEEK, PA12, PTFE | Low friction, chemical resistance, lightweight | Fiber holders, spacers, non-load-bearing fixtures |
Before machining your spectrometer components, our surface treatment engineers select the most suitable and high-precision finishing method based on functional requirements. We have provided surface finishing services for ten thousands of optical and structural metal and plastic components. Common surface treatments for spectrometer components include:
| Surface Treatment | Purpose | Typical Components |
|---|---|---|
| Sandblasting | Reduces surface reflections and removes machining burrs | Optical mounts, internal housings, structural parts |
| Anodizing | Provides corrosion resistance, durable finish, and electrical insulation for aluminum parts | Lens housings, optical mounts, frames |
| Polishing / Lapping | Ensures precise optical reference surfaces and tight tolerances | Functional optical surfaces, alignment faces, mounts |
| Blackened / Matte Finish | Minimizes stray light and reflections in optical paths | Optical bases, internal cavities, light-sensitive surfaces |
Advanced 5-Axis CNC Machining：We utilize high-speed 5-axis CNC centers to machine complex spectrometer housings and optical benches in a single setup. This eliminates re-clamping errors and ensures the alignment of multiple optical axes.
CMM Inspection：Equipped with CMM and optical measurement systems, we verify critical dimensions and GD&T (Flatness, Parallelism, Position) with a precision of 0.005mm, providing full inspection reports for every batch.
Stress Relief & Thermal Stability：To prevent optical drift, we perform specialized Heat Treatment and Stress Relieving for materials like Invar and Aluminum 7075. This ensures your components remain stable under varying operating temperatures.
Optics-Grade Surface Finishing：We provide specialized Deep Matte Black Anodizing and manual deburring under magnification. This suppresses stray light and ensures a contaminant-free surface ready for cleanroom assembly.
How can DFM support help optimize my spectrometer component design?
Our DFM support identifies critical optical surfaces, suggests design adjustments for manufacturability, and minimizes assembly or alignment issues. By optimizing wall thickness, material choice, and machining strategies, we reduce risks, improve repeatability, and lower production costs while ensuring components meet strict optical and mechanical requirements.
What is the typical lead time for custom spectrometer components?
Lead times depend on complexity and quantity. Prototypes are typically delivered within 2–4 weeks, while production orders usually take 4–8 weeks. Expedited services are available for urgent projects, and our planning ensures timely delivery without compromising precision or quality.

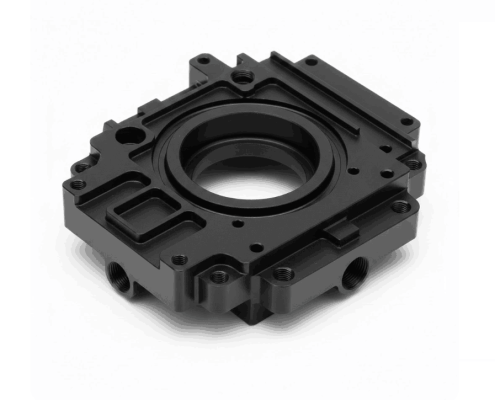

Can you manufacture components with ultra-thin walls or complex geometries?
Yes. Using advanced 5-axis CNC machining, precision fixturing, and optimized cutting strategies, we can produce thin-walled, intricate, and internal-cavity components while maintaining dimensional stability and avoiding deformation.
How do you ensure consistent quality across multiple production batches?
We implement strict process control, in-process inspections, and final verification using CMM and functional testing. Standardized procedures and tooling ensure that each batch consistently meets micron-level tolerances and optical performance requirements.
Do you offer small-batch production services?
Yes. We support rapid prototyping and small-volume production, enabling design validation and early-stage testing before scaling up to larger production runs.
Which certifications or quality standards do you comply with?
Our facilities comply with ISO 9001 quality management standards, and we follow RoHS and REACH material compliance guidelines. These certifications ensure reliable, high-quality components suitable for precision optical applications.
Upon receiving your 3D CAD file, our dedicated customer service engineer will thoroughly review your design for manufacturability, ensuring it meets your precise specifications and budget requirements. Contact us today for a free quote!
