Custom CNC Machining Optical Mount Components

With 15 years of experience, we deliver custom cnc machining optical mount components characterized by superior accuracy. Our precision optical component machining expertise ensures that each part aligns with the strict specifications of sophisticated laser systems and optomechanical assemblies.

Start Your Instant Quote

Our Partners

partners bell partners axa Tesla partners cubic partners testeo partners vtech partners hms partners vishay

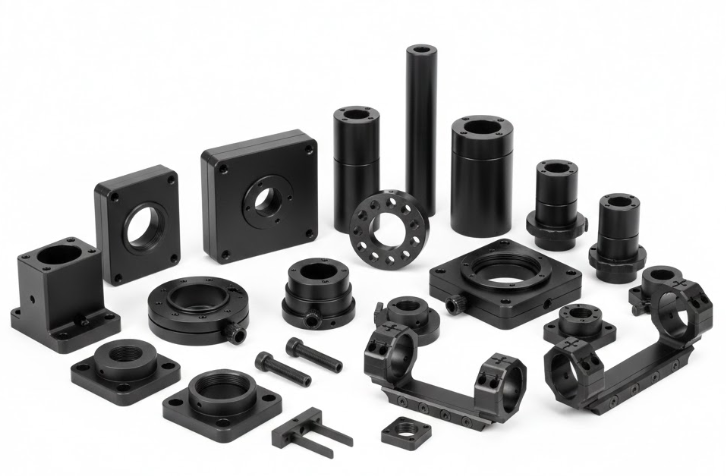

Custom CNC Optical Mount Components Manufactured by VMT

VMT has effectively collaborated with more than 150 specialized optical instrumentation firms to realize their intricate designs. Up to now, we have supplied over 50,000 optical mount components, which includes a portfolio of more than 3,000 high-precision custom cnc machining optical mount components.
with 15 years of experience, we have fabricated these optical mount components for multiple brands, including offset optic mounts, optical mirror mounts, and accessories for mounts optics. we also manufacture high-quality high rise optic mounts.

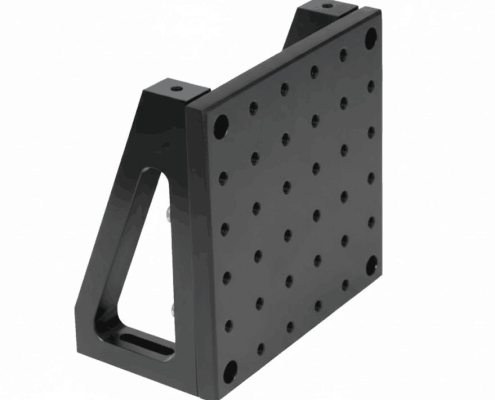

Optical Mounting Plate

Get a Quick Quote

Lens Mount Housing

Get a Quick Quote

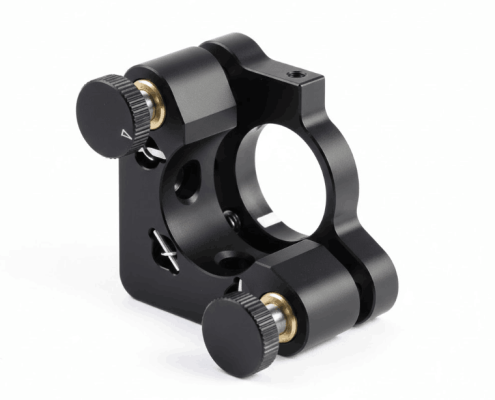

Kinematic Optical Mount

Get a Quick Quote

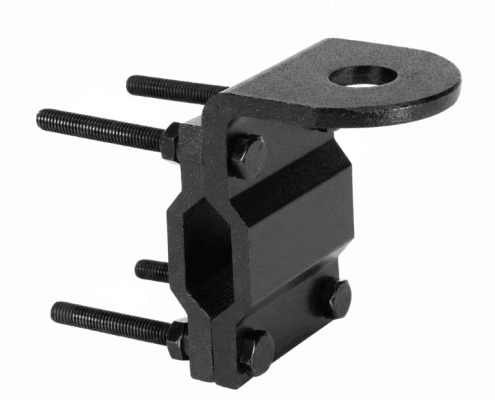

Mirror Mount Bracket

Get a Quick Quote

Optical Post Holder

Get a Quick Quote

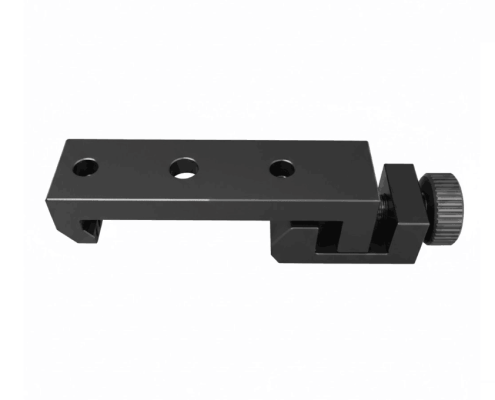

Optical Rail Carrier

Get a Quick Quote

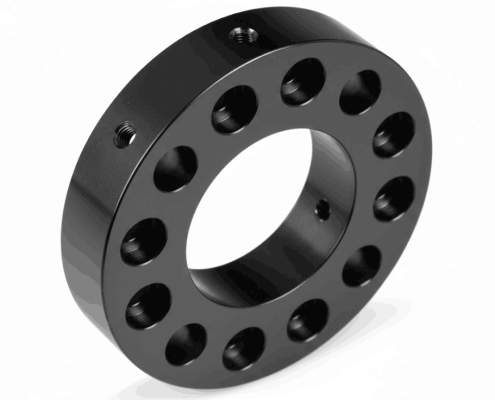

Optical Cage Plate

Get a Quick Quote

Precision Adjustment Mount

Get a Quick Quote

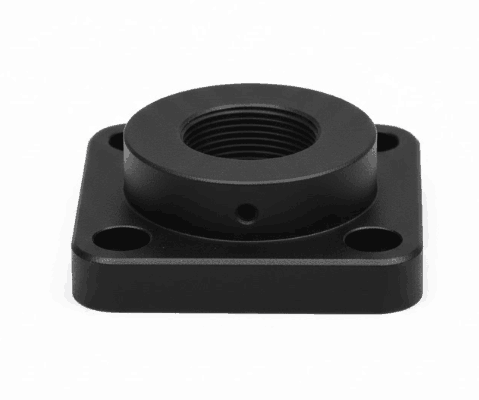

Optical Base Adapter

Get a Quick Quote

CNC Machining Optical Mount Components Manufacturing Services

VMT supports every stage of your project, from rapid prototyping to full-scale mass production. We ensure consistent quality and technical precision for all optical mount components, providing a seamless manufacturing transition for complex precision optical component machining requirements.

CNC Machining

Leverage advanced 3- and 5-axis rapid machining technologies to achieve precision tolerances as tight as ±0.005 mm. With streamlined operations, we offer delivery times as fast as 1 day.

Get a Quick Quote

Swiss Machining

This process excels at fabricating slender adjustment rods with high positional accuracy. it ensures the seamless integration and smooth motion required for high-end custom cnc machining optical mount components.

Get a Quick Quote

Precision Boring

we apply precision boring to maintain micron-level tolerances for optical mount components seating diameters. this ensures the critical bore consistency and axial alignment required in precision optical component machining.

Get a Quick Quote

Wire Edm

our wire EDM service creates stress-free, intricate geometries for optical mount components. it enables the complex detailing and burr-free precision required in custom cnc machining optical mount components.

Get a Quick Quote

Precision Grinding

we apply precision grinding to achieve sub-micron flatness on optical mount components mounting surfaces. this ensures the stable, distortion-free interface required for precision optical component machining.

Get a Quick Quote

Heat Treatment

we use stress-relief heat treatment to stabilize optical mount components by eliminating internal tension. this prevents long-term deformation, ensuring the dimensional stability of precision optical component machining.

Get a Quick Quote

Custom CNC Machining Optical Mount Components Material Selection

we provide a strategic selection of materials for optical mount components, including aluminum, stainless steel, brass, titanium, engineering plastics, bronze, invar, and kovar. our engineers have listed these materials and their application scenarios to ensure the specific performance required for your precision optical component machining projects.

Material	Grade / Alloy	Reason For Use	Typical Components
Aluminum	6061, 7075, 6063	High strength-to-weight ratio and excellent anodizing quality for surface blackening.	Optical breadboards, mounting brackets, base plates
Stainless Steel	303, 304, 316	Superior structural rigidity and excellent compatibility with high-vacuum environments.	Post holders, mounting posts, clamping forks
Brass	C36000, C3602, C3604	Low friction and high wear resistance for precision adjustment interfaces.	Precision bushings, pivot pins, sliding dovetails
Titanium	Grade 2, Grade 5, Grade 23	Exceptional thermal stability and high strength for extreme environment durability.	Laser mount frames, thermal isolation supports
Engineering Plastics	PEEK, POM, PTFE	Non-reflective properties, chemical resistance, and low-friction sliding performance.	V-blocks, insulating spacers, glide rail inserts
Invar	Invar 36	Near-zero thermal expansion ensuring optical alignment remains stable under temperature flux.	High-precision resonator mounts, ultra-stable sub-bases
Kovar	ASTM F15	Controlled thermal expansion matched to optical glass or ceramic components.	Optoelectronic sensor housings, hermetic optical mounts

Aluminum

Stainless Steel

Brass

Titanium

Engineering Plastics

Bronze

Invar

Kovar

Typical Surface Treatment of Optical Mount Components

Before machining optical mount components, our engineers select the optimal finishing method to address stray light and precision requirements. Common surface treatments for optical mount components include:

How does VMT ensure stable coaxiality for your optical mount components?

Single-Setup Machining & Unified Datums: We process all critical bores in a single cycle using 5-axis CNC centers. This eliminates cumulative errors from repositioning and ensures a unified datum for consistent axial alignment.
Precision Boring Process: We utilize high-precision boring tools to correct axis deviation, achieving the strict tolerances required for precision optical component machining that standard drilling cannot meet.
Stress-Relief Treatment: To prevent material deformation, we perform stress-relief heat treatments after roughing. This stabilizes the material structure before final precision optical component machining to guarantee the stability of the coaxial axis.

Start Your Instant Quote

How do we remove processing residues from complex precision optical component machining?

To ensure the cleanliness required for optical mount components, we utilize a multi-stage ultrasonic cleaning process that effectively removes cutting oils and metal particles from deep blind holes and internal threads. This high-frequency agitation penetrates complex geometries that standard washing cannot reach, preventing outgassing and contamination in vacuum or laser environments. By eliminating all processing residues, we guarantee that every precision optical component machining project meets the stringent surface purity standards necessary for high-performance optical systems.

Start Your Instant Quote

Qualify Evaluation Report

For each order we receive, we tailor a comprehensive suite of quality inspection reports aligned with your specific processing needs.

Inspection Report:

Full Dimensional Report:
This report details the complete dimensional measurements of the processed parts, ensuring precision and adherence to design specifications.
Material Certification & Test Report:
This document verifies the material’s compliance with specified standards and includes test results that attest to its quality, durability, and suitability for the intended application.

Certificate

As an experienced manufacturer specializing in on-demand CNC machined parts, we have the following certifications:

ISO 9001:2015
IATF 16949:2015
ROHS Directive
12 patent certifications

FAQ about Custom CNC Machining Optical Mount Components

What are the basic optical components?

Common optical components include lenses, mirrors, prisms, filters, and beam splitters. These elements are designed to manipulate light in various systems. VMT specializes in the precision optical component machining of the metal housings and optical mount components required to secure these parts with extreme accuracy.

Can you provide full assembly for my optical mount components?

Yes. We offer complete assembly services, integrating parts into your optical mount components. Our team ensures precise alignment and cleanroom-level handling, delivering ready-to-use modules and simplifying your supply chain for complex precision optical component machining projects.

How do you optimize precision optical component machining via DFM?

Our engineers analyze your designs to simplify geometries and improve tool access without compromising optical performance. By recommending optimal materials and tolerances during DFM, we reduce production steps for optical mount components, lowering costs and enhancing the efficiency of precision optical component machining.

What is your standard lead time for complex optical mount components?

Typically, prototypes are delivered within 7–10 days, while mass production for optical mount components takes 3–4 weeks. Lead times vary based on geometry and surface treatment complexity.

Do you offer trial production before mass precision optical component machining?

Absolutely. We provide small-batch trial runs to verify the fit and function of your optical mount components. This phase allows for fine-tuning the design and process parameters before moving into full-scale precision optical component machining, minimizing risk and ensuring consistent quality.

Can you handle small-batch orders for custom optical mount components?

Yes. We support low-volume production and customized R&D projects. Whether you need a single prototype or a small batch of optical mount components, our precision optical component machining services are flexible enough to accommodate your specific quantity and technical requirements.

Related Products

Custom CNC Machining Telescope Parts

Custom CNC Machining Laser Parts

Custom CNC Machining Fiber Optic Components

Custom CNC Machining Camera Parts

Custom CNC Machining Microscope Parts

Custom CNC Machining Spectrometer Components

CNC Processing Optical Laser Machine Galvanometer Housing

Optical Measuring Instrument High Precision Parts

Custom CNC Machining Optical Measuring Instrument Parts

Get Your Project Started Today

Upon receiving your 3D CAD file, our dedicated customer service engineer will thoroughly review your design for manufacturability, ensuring it meets your precise specifications and budget requirements. Contact us today for a free quote!
