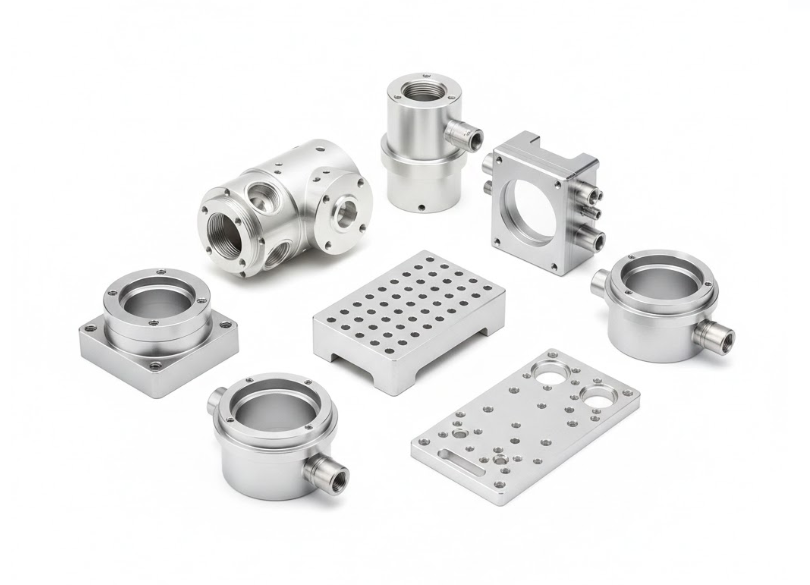

Backed by 15 years of expertise, we provide custom CNC machining fiber optic components based on your specific designs, we deliver high-quality fiber optic component solutions with remarkable accuracy.
VMT has successfully partnered with over 150 specialized optical companies to bring their complex designs to life. To date, we have processed more than 50,000 OEM units, including over 5,000 CNC machined fiber optic parts produced through precision CNC machining for fiber optics.
With 15 years of experience, we have manufactured numerous fiber optic hardware components and fiber optic system components, and possess extensive manufacturing expertise.
VMT offers a comprehensive range of manufacturing services, including 3D printing, sheet metal fabrication, die casting, and extrusion molding, enabling us to support every stage of your spectrometer manufacturing process and ensure consistent quality from prototyping to mass production.
Leverage advanced 3- and 5-axis rapid machining technologies to achieve precision tolerances as tight as ±0.005 mm. With streamlined operations, we offer delivery times as fast as 1 day.
Engineered for small-diameter fiber optic needs, this process provides exceptional concentricity for alignment sleeves and housings. It ensures the ultra-precise axial stability and tight tolerances essential for high-performance optical components.
Optimized for high-precision fiber optic interfaces, this technique delivers high-accuracy threads for seamless component coupling. It ensures zero-play stability and smooth-operating connections.
We provide high-precision Wire EDM services tailored for the complex internal features of fiber optic components. Our capabilities enable the creation of intricate narrow slots and micro-geometries in hard materials that conventional machining cannot achieve.

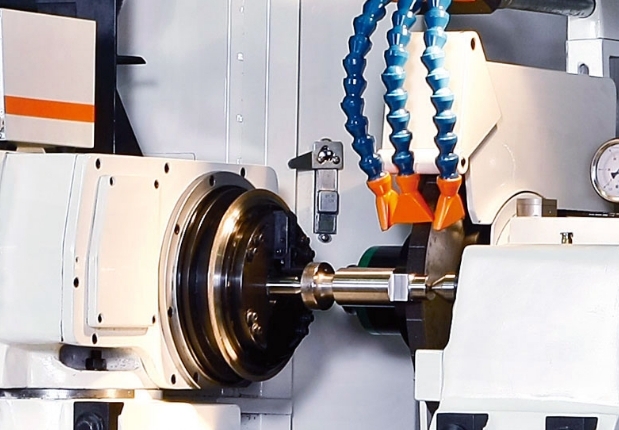

Ideal for critical alignment surfaces and hard materials, this process creates ultra-smooth finishes on fiber optic component surfaces. It allows for high-precision dimensional stability that fiber optic components requires for minimal signal loss.
Common materials for fiber optic component manufacturing include aluminum, stainless steel, copper, Kovar, Invar, and engineering plastics. Aluminum is lightweight for housings; stainless steel offers durability for connectors; copper ensures heat dissipation for modules; Kovar and Invar provide thermal stability to prevent misalignment in custom CNC machining fiber optic components; and plastics are used for internal insulators.
| Material | Grade / Alloy | Reason For Use | Typical Components |
| Aluminum | 6061, 7075, 6063 | Superior thermal conductivity and excellent strength-to-weight ratio | SFP lids, TO-can headers, heat sink fins |
| Stainless Steel | 303, 304, 316 | High corrosion resistance and long-term dimensional stability | Alignment pins, adapter bushings, ferrules |
| Copper / Brass | C11000, C36000 | Outstanding heat dissipation and low coefficient of friction | Laser submounts, splitter tubes, screw sleeves |

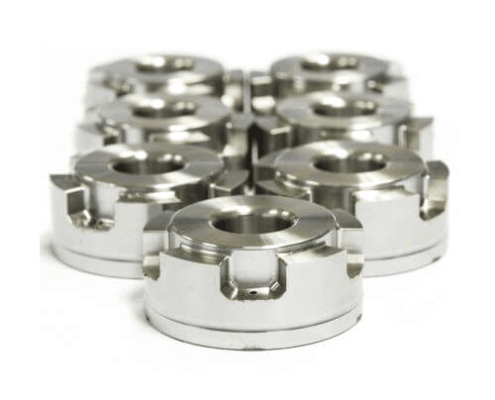

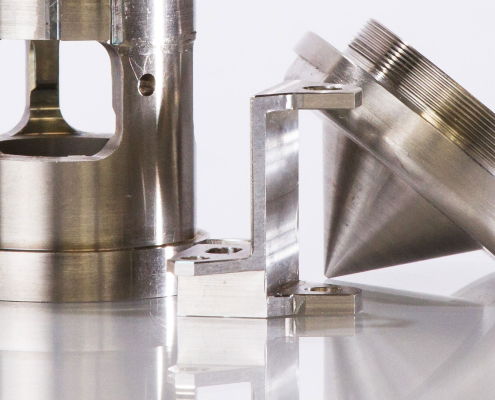

| Specialized Alloys | Kovar, Invar 36 | Precision CTE matching to prevent critical optical misalignment | Laser seal rings, seating rings, ferrule mounts |
| Engineering Plastics | PEEK, Ultem, POM | Excellent dielectric strength and high temperature resistance | Insulating spacers, fiber clips, internal bobbins |

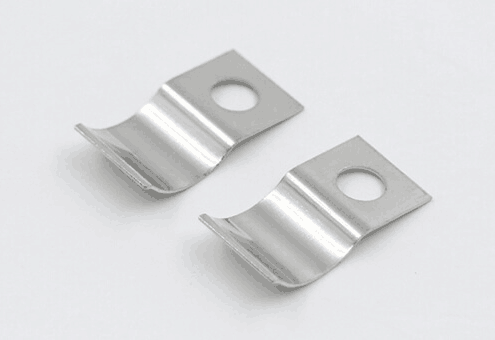

Before manufacturing your fiber optic hardware components, our surface treatment engineers select the most suitable finishing method based on your specific signal requirements. Common surface treatments for these components include:

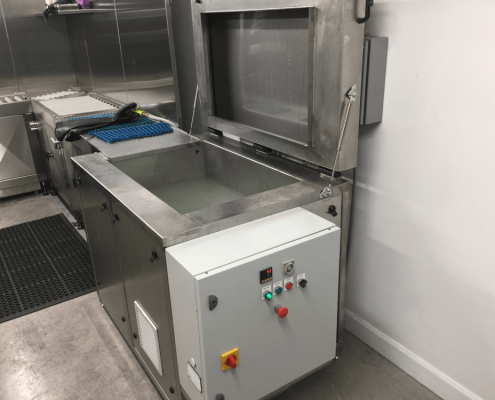

Beyond precise material removal, we provide integrated contamination control as a critical part of our custom CNC machining fiber optic components workflow. Our facility utilizes multi-stage ultrasonic cleaning to eliminate all traces of cutting fluids and metallic residues from intricate internal geometries. This specialized service ensures that every fiber optic component is delivered free of outgassing risks and ready for immediate, high-reliability assembly.
For each order we receive, we tailor a comprehensive suite of quality inspection reports aligned with your specific processing needs.
Inspection Report:
As an experienced manufacturer specializing in on-demand CNC machined parts, we have the following certifications:
What are the components of a fiber optic system?
A typical system consists of a light source (laser or LED), an optical fiber for transmission, and a photodetector receiver. To support these, we process essential fiber optic hardware components such as transceiver housings, ferrules, alignment pins, and submounts, which ensure the physical alignment and protection of the internal optical path.
What is the maximum achievable tolerance for your precision fiber optic hardware?
Through precision CNC machining for fiber optics, we can achieve tolerances as tight as ±0.005mm on critical dimensions. For specialized parts like ferrule mounts and lens seating rings, we utilize Swiss-type lathes and high-precision milling to ensure micron-level accuracy, meeting the most demanding alignment requirements in optical networking.
How does VMT ensure the internal cleanliness of parts to prevent optical signal interference?
We implement a multi-stage ultrasonic cleaning process as a standard part of our custom CNC machining fiber optic components workflow. This service effectively removes all metallic micro-particulates and cutting fluid residues from blind holes and threads, eliminating outgassing risks and ensuring every fiber optic component is assembly-ready.
Do you provide assembly services?
Yes. Beyond individual part production, we offer value-added sub-assembly services for complex optical modules. Our team can integrate multiple custom CNC machining fiber optic components into a single sub-unit, providing a streamlined supply chain solution that ensures perfect fitment and reduces the assembly burden for our clients’ engineering teams.
What specialized inspection equipment is used to verify micron-level geometric tolerances?
To verify the integrity of each fiber optic component, we utilize high-end metrology tools, including CMM (Coordinate Measuring Machines), 2.5D vision measurement systems, and digital microscopes.
Can your engineers provide DFM support for specialized optical alloys?
Absolutely. Our engineers offer specialized DFM feedback for challenging materials like Kovar and Invar. We help optimize your designs to balance performance and manufacturability, ensuring that your fiber optic hardware components achieve the necessary thermal stability while remaining cost-effective during high-precision production runs.
Upon receiving your 3D CAD file, our dedicated customer service engineer will thoroughly review your design for manufacturability, ensuring it meets your precise specifications and budget requirements. Contact us today for a free quote!
