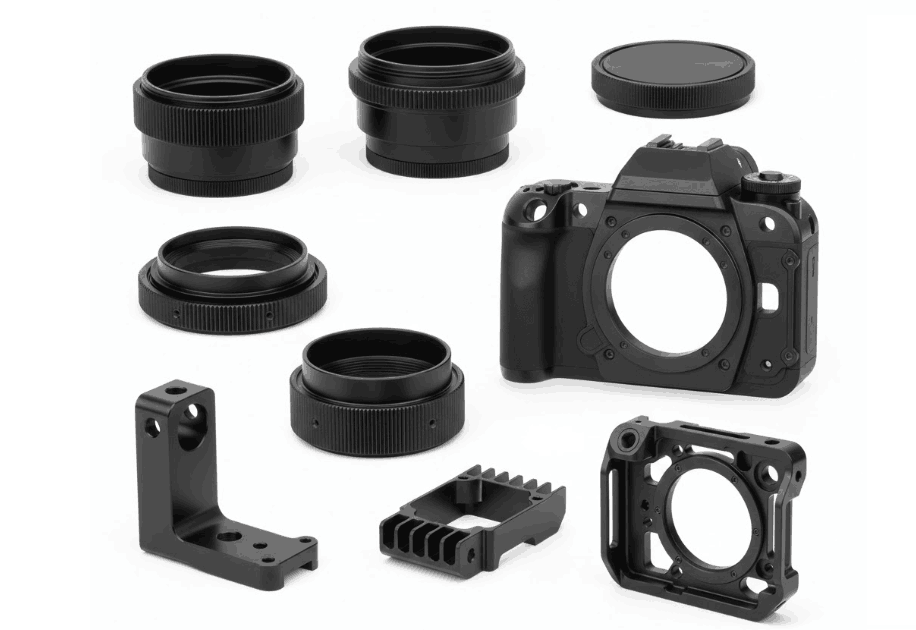

Drawing on 15 years of technical expertise, we specialize in fabricating complex parts of a camera that demand uncompromising accuracy. As a leading china cnc camera parts factory, we focus on eliminating structural micro-vibrations and ensuring the perfect alignment of optical paths for professional-grade devices.
We have successfully partnered with over 60 specialized photography and imaging brands to bring their complex designs to life. To date, our facility has delivered more than 20,000 cnc camera components.
Drawing on 15 years of technical expertise, we have manufactured high-precision ring camera parts, rugged gully camera part units, and specialized parts of a digital slr camera. Our past projects also include delivering professional parts of a film camera and various mechanical parts of dslr camera assemblies for industry-leading imaging brands.
VMT offers a comprehensive range of manufacturing services, including 3D printing, sheet metal fabrication, die casting, and extrusion molding, enabling us to support every stage of your spectrometer manufacturing process and ensure consistent quality from prototyping to mass production.
Leverage advanced 3- and 5-axis rapid machining technologies to achieve precision tolerances as tight as ±0.005 mm. With streamlined operations, we offer delivery times as fast as 1 day.

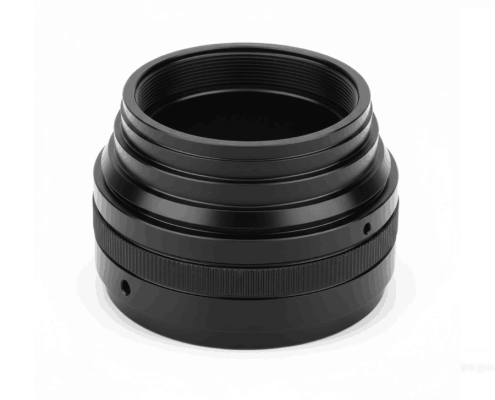

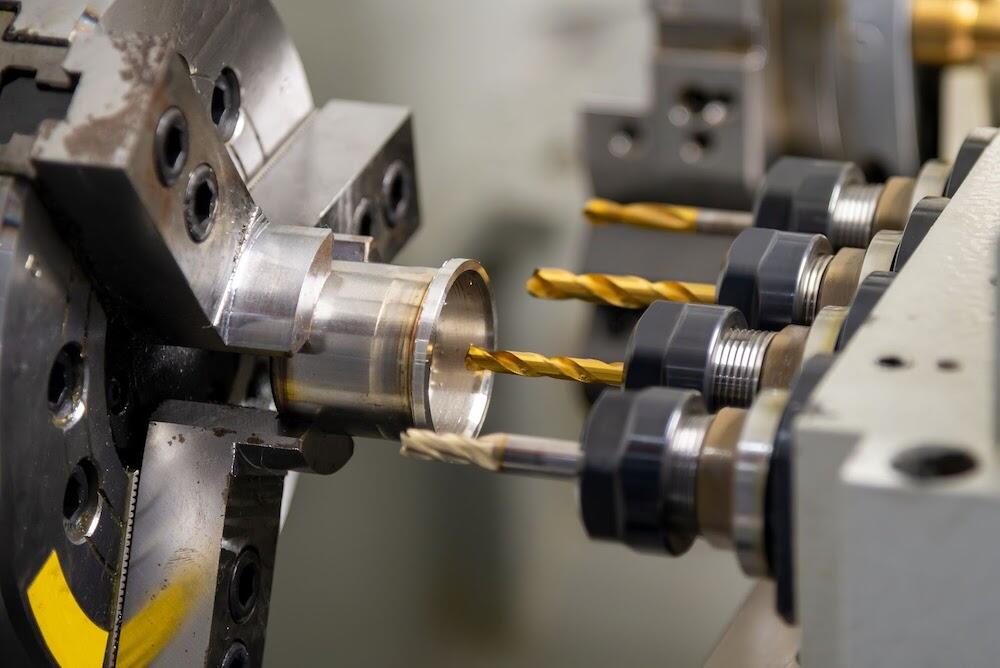

Our Swiss Machining capabilities excel at producing micro-diameter camera components with extreme concentricity. We provide precision-machined adjustment shafts and lens barrels, ensuring the smooth rotation and fit-up.

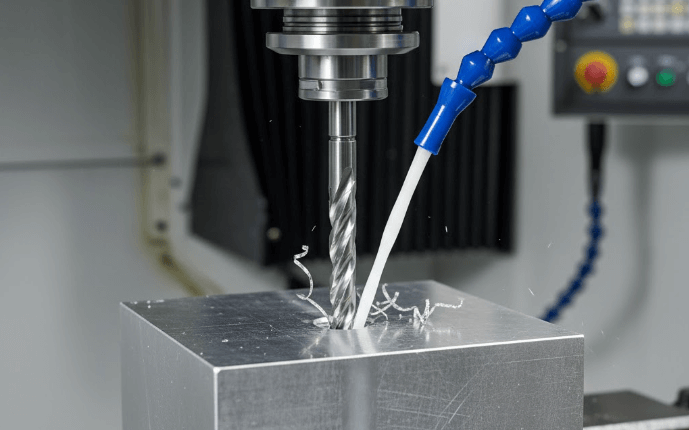

We provide high-precision Tapping and Thread Grinding services. This technique ensures zero-play motion for focusing and zoom mechanisms, creating smooth, reliable connections for all professional camera components.

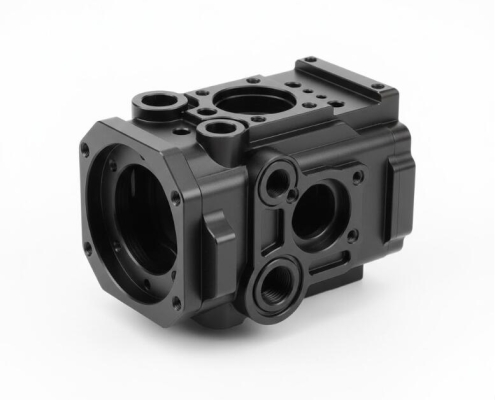

We offer specialized fabrication for thin-walled camera structures, providing high strength and durability. This ensures all camera components integrate perfectly within tight housing constraints for a precise fit.
We provide Wire EDM for intricate slots and complex internal features. This process achieves high-precision geometries in hard materials that conventional tools cannot, ensuring accurate fit-up for camera components.
Our expertise extends to a variety of materials optimized for precision imaging. We utilize aluminum alloys for lightweight frames and stainless steel to ensure the durability of critical parts of a camera. For mechanical movement, brass & copper are used to provide smooth motion for internal parts camera assemblies. Additionally, we process titanium for components requiring high thermal stability and engineering plastics for low-friction cnc camera components.
| Material | Grade / Alloy | Reason For Use | Typical Components |
| Aluminum | 6061, 7075, 6063 | Lightweight, high strength, easy to machine | Main frames, lens housings, camera adapters |

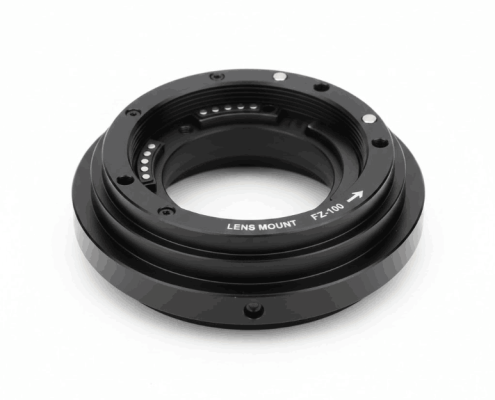

| Stainless Steel | 303, 304, 316 | Corrosion resistance, dimensional stability | Lens mounts, focusing shafts, mounting plates |
| Brass | C3602, C3604, C4641 | Low friction, smooth motion, wear resistance | Fine adjustment gears, parts camera helicoids, bushings |
| Titanium | Grade 2, Grade 5 | High strength-to-weight, thermal stability | Sensor mounts, vacuum-stable clips, high-end parts of a camera |
| Engineering Plastics | PEEK, POM, PTFE | Low friction, chemical resistance, insulation | Internal spacers, insulating rings, sliding bearings |
Before machining your parts of a camera, our engineers select the optimal finishing method to meet your specific optical and mechanical requirements. We have provided precision surface treatments for thousands of components. Common finishes for parts camera assemblies include：

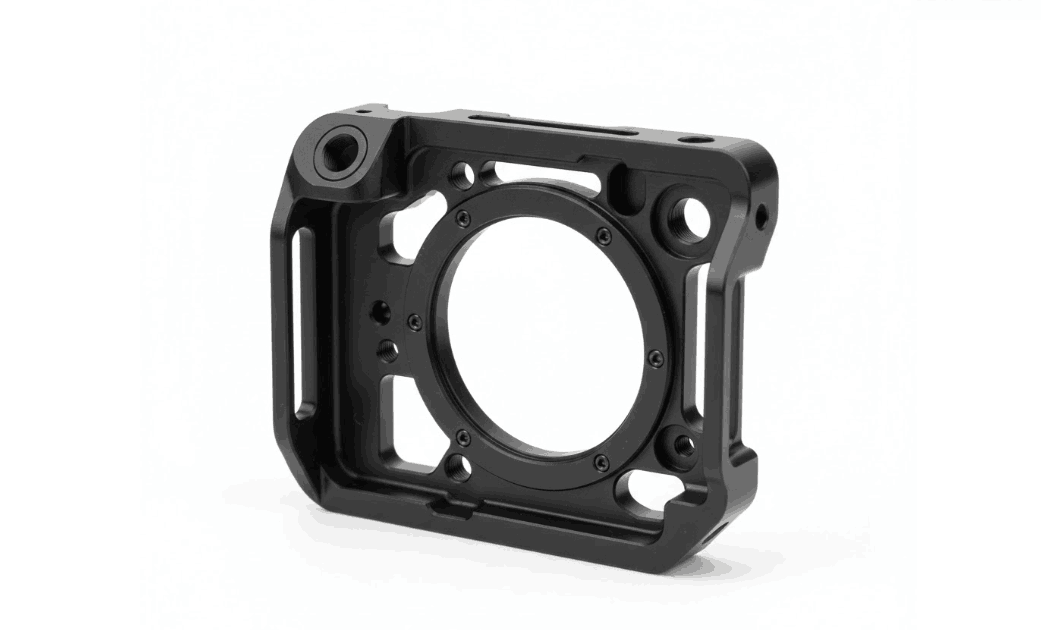

To address your concerns about the dimensional stability of thin-walled frames, we offer specialized manufacturing process designed to eliminate deformation.
For each order we receive, we tailor a comprehensive suite of quality inspection reports aligned with your specific processing needs.
Inspection Report:
As an experienced manufacturer specializing in on-demand CNC machined parts, we have the following certifications:
What are the 7 basic parts of a camera?
The seven essential components are the body acting as the light-tight chassis, the lens for focusing light, the shutter to control exposure time, the aperture to regulate light volume, the image sensor or film for capturing light, the viewfinder for framing, and the control interface such as buttons and dials.
What types of camera parts can be CNC machined?
CNC is ideal for high-precision components such as lens barrels, iris diaphragms, camera cages, tripod plates, lens mounts, gimbal arms, and internal sensor frames. This process ensures sub-micron accuracy which is critical for light alignment and perfect mechanical fit.
Why is stainless steel used for high-end lens mounts?
Stainless steel offers superior wear resistance and hardness. Unlike aluminum, it will not deform or shave off metal flakes during frequent lens changes. This ensures a precise seal and maintains the critical flange focal distance over years of professional use.
When is titanium alloy chosen for photo equipment?
Titanium is selected when an extreme strength-to-weight ratio is required or for use in corrosive environments such as salt-water surf photography. It provides the durability of steel at nearly half the weight, used primarily in flagship bodies or specialized underwater housings.
Does the factory provide assembly services?
We provide integrated assembly. This includes installing sub-components like O-rings, bearings, and fasteners, or performing optical-grade assembly in cleanrooms to ensure internal mechanisms like focus helicoids operate smoothly without any dust contamination.
Upon receiving your 3D CAD file, our dedicated customer service engineer will thoroughly review your design for manufacturability, ensuring it meets your precise specifications and budget requirements. Contact us today for a free quote!
