What Are Countersink Holes? A Guide for CNC Machining
Countersink holes create a conical recess in a material, allowing screw or bolt heads to sit flush with or below the surface. You improve part quality and assembly by using precise dimensions, such as a 0.25-inch pilot hole and a 0.5-inch countersink diameter with a 90-degree angle. Tight tolerances, like ±0.005 inches, help you achieve accurate, repeatable results. When you understand how to specify and create countersink holes, you gain better control over your CNC machining projects.
Key Takeaways
- Countersink holes create a conical recess that lets screw heads sit flush or below the surface, improving part appearance and function.
- Choose the correct countersink angle to match your fastener type, usually 82° for imperial screws and 90° for metric screws, to ensure a perfect fit.
- Use proper tools, control cutting speed, and apply lubrication to achieve precise countersink holes and extend tool life.
- Countersink holes reduce snags, improve load distribution, and make assembly easier by aligning fasteners accurately.
- Follow industry standards and clearly specify countersink dimensions and tolerances in your drawings to ensure high-quality, reliable parts.
Countersink Holes in CNC Machining
Definition and Purpose
You encounter countersink holes often in CNC machining. These holes have a conical recess at the outer edge, which allows fastener heads to sit flush with or below the surface. This design improves both the look and function of your parts. When you use countersink holes, you make surfaces smoother and reduce the risk of fastener heads sticking out. This helps prevent snags and allows moving parts or overlaying components to fit together without interference.
Authoritative sources, such as Xometry’s mechanical engineering guides, explain that countersink holes follow specific standards. You will find common angles like 82° for ANSI/Imperial screws and 90° for metric (ISO) fasteners. The process involves using specialized countersink tools that create a precise conical shape in a pre-drilled hole. You can apply this process in both manual and CNC operations. By following these standards, you ensure that your assemblies meet industry requirements for durability and appearance.
Tip: Always match the countersink angle to your fastener type. This ensures the screw or bolt sits perfectly flush and avoids damaging the material.
Key Features
High-quality countersink holes share several important features. You should pay attention to these details to achieve the best results in your CNC projects:
- Standard drill bits create conical bottoms, which are preferred over flat-bottomed holes. Flat bottoms require extra machining and can lower quality.
- The entrance and exit of the hole should stay perpendicular to the drill axis. This prevents the drill from wandering and reduces burrs.
- Proper geometry and surface orientation are critical. You want the hole to match the fastener and the part’s design.
- Tight tolerances, such as H7, allow you to use reaming instead of precision milling for better accuracy.
- Material choice matters. Softer metals let you drill deeper, but harder metals may cause tool deflection and affect hole quality.
- Always indicate threads, tolerances, and surface finish in your drawings. This helps machinists produce the exact hole you need.
You can see how these features compare in the table below:
Key Feature | Description |
---|---|
Hole Bottom Geometry | Standard drill bits produce conical bottoms (118° or 135°); flat bottoms require extra machining. |
Diameter Selection | Use standard drill sizes below 20mm to avoid costly end milling and maintain tolerances. |
Depth Control | Limit hole depth to 4x diameter for end-milled holes, 10x for drilled holes to ensure quality. |
Tolerances | Specify tight tolerances (e.g., H7) to allow reaming instead of precision milling. |
Material Consideration | Softer metals allow deeper holes; harder metals may cause tool deflection affecting hole quality. |
Critical Features | Clearly indicate threads, tolerances, and surface finish in drawings for proper machining. |
Note: Countersink holes provide even load distribution and lower stress concentration compared to straight holes. This reduces material damage and improves assembly precision and durability.
Countersink vs. Counterbore
Main Differences
You often see both countersink and counterbore holes in CNC machining, but they serve different purposes. A countersink hole has a conical shape at the opening. This shape matches the angle of flathead screws, allowing them to sit flush or slightly below the surface. In contrast, a counterbore hole has a flat-bottomed, cylindrical recess. This design fits cap-head or socket-head screws, so the entire head sits below the surface.
The table below highlights the main differences between countersink and counterbore holes:
Feature | Countersink Holes | Counterbore Holes |
---|---|---|
Recess Shape | Conical | Cylindrical, flat-bottomed |
Fastener Type | Flathead screws, rivets | Cap-head, socket-head, or flat-headed screws |
Purpose | Flush or sub-flush fastener seating | Conceal fastener heads below the surface |
Standards | ANSI/ISO angle and diameter recommendations | ANSI/ISO diameter and depth recommendations |
Aesthetic Consideration | Smooth, flush finish | Clean look with hidden fastener heads |
Tip: You can improve both safety and appearance by choosing the right hole type for your fastener.
When to Use Each
You should select a countersink hole when you want a flathead screw to sit flush with the surface. This choice works well in assemblies where moving parts must clear the fastener heads or where you want a smooth finish. Countersink holes also help align stacked components and reduce the risk of snags or injuries from protruding screws.
Counterbore holes are best when you use cap-head or socket-head screws. These holes provide a precise, flat-bottomed seat for the screw head. You often see counterbores in applications that require strong, secure joints and a clean appearance with hidden fastener heads. Counterbores also help when you need to control the depth and alignment of the fastener.
You can use the following decision metrics to guide your choice:
- Fastener type: Flathead screws need countersinks; cap-head screws need counterbores.
- Recess shape: Conical for countersinks, cylindrical for counterbores.
- Clearance and aesthetics: Choose countersinks for flush finishes and counterbores for hidden heads.
- Assembly needs: Countersinks ease insertion and alignment; counterbores ensure secure seating.
By understanding these differences, you can select the right hole type for your CNC project and achieve both functional and visual goals.
Applications and Benefits
Typical Uses
You find countersink holes in many engineering fields. These holes help you create smooth, flush surfaces for fasteners. The table below shows how different industries use countersink holes and the benefits they provide:
Application Area | Use of Countersink Holes | Specific Benefits |
---|---|---|
Aerospace | Fasteners sit flush with aircraft surfaces | Reduces air resistance, improves fuel efficiency |
Electronics | Smooth device casing surfaces | Reduces hazards from sharp edges, improves safety |
Woodworking/Furniture | Conceals fasteners, prevents splitting | Enhances aesthetics, prevents material damage |
Automotive | Smooth vehicle panel surfaces | Improves appearance, reduces snag hazards |
Precision Engineering | Self-centering feature for fasteners | Ensures precise alignment, critical for structural integrity |
You see that countersink holes play a key role in both function and appearance. In aerospace, flush fasteners lower drag and boost performance. In electronics, smooth casings protect users from sharp edges. Woodworking projects look cleaner and last longer when you hide screws and prevent splitting. Automotive panels stay sleek and safe. Precision engineering relies on accurate alignment for strong, reliable assemblies.
Advantages
Countersink holes offer several advantages that improve your projects:
- You achieve a flush or recessed finish, which prevents fastener heads from sticking out.
- You reduce the risk of snags, injuries, or damage to moving parts.
- You improve the appearance of your products by hiding or blending fasteners.
- You ensure better load distribution, which increases the strength and durability of joints.
- You make assembly easier because fasteners align themselves in the conical recess.
Tip: Choosing the correct countersink angle, such as 82° for ANSI-inch fasteners or 90° for metric fasteners, ensures compatibility and optimal performance.
You can use countersink holes to meet both technical and visual requirements in your designs. These benefits make them a standard feature in many CNC machining projects.
Countersink Holes: Process and Best Practices

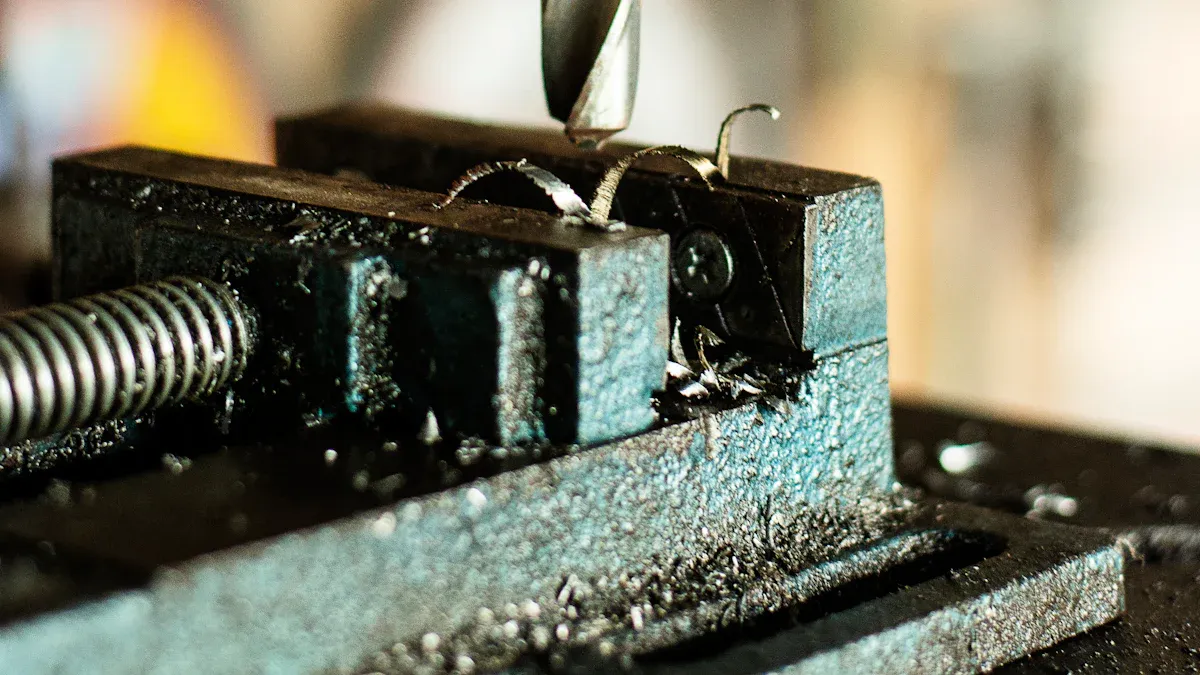

Tools and Methods
You can choose from several tools and methods to create precise countersink holes in CNC machining. Each tool type serves a specific purpose and matches different hole geometries. Cylindrical, conical, and end countersinks are common options. Conical countersinks, often set at 90°, work well for most flathead screws.
- Use guide columns that match the hole diameter to keep the tool centered.
- Reduce cutting speed to about half or a third of the drilling speed. This helps you avoid vibration marks and improves surface finish.
- Clamp the countersink drill arbor and blade firmly. Secure the workpiece tightly to prevent tool vibration and defects.
- Apply lubricating oil when working with steel. This reduces heat and keeps your tool sharp.
- Select tools with coatings like TiAlN for metals or uncoated tools for wood and plastics.
You can also use combined drilling and countersinking tools. These tools let you drill and countersink in one step, saving time and improving alignment. Many CNC machines support CAD/CAM programming for countersinking. You can use specific G-codes, such as G82 with dwell time, to control countersink depth and surface finish. This approach increases precision and repeatability.
Tip: Always monitor tool wear. Worn tools increase thrust force and reduce countersinking accuracy.
Angles and Dimensions
You need to match the countersink angle to your fastener type. The most common angles are 82°, 90°, and 120°. Imperial fasteners, such as #10 flathead screws, use an 82° angle. Metric fasteners, like M5 flathead screws, use a 90° angle. Some aerospace applications use 100° or 120° angles for specialized fasteners.
Hardware Type | Countersink Angle (°) | Major Diameter | Minor Diameter | Countersink Depth | Material Thickness Limit |
---|---|---|---|---|---|
Imperial (e.g., 1/4-20 flat head screw) | 82° | ~0.531″ | ~0.250″ | ~0.161″ | Depth ≤ 60% of material thickness |
Metric (e.g., M5 x 0.8mm flat head screw) | 90° | 10 mm | 5 mm | 2.8 mm | Depth ≤ 60% of material thickness |
You should follow these rules of thumb for diameter and depth:
- Set the countersink diameter to about 1.5 times the bolt diameter.
- Keep the countersink depth less than or equal to 60% of the material thickness. This prevents weakening the part.
- Ensure at least 50% contact between the fastener head and the countersink for secure seating.
Fastener Type | Countersink Angle (°) | Countersink Diameter (relative to fastener size) |
---|---|---|
ANSI/Imperial | 82° | Size #0: 5/32″, Size #10: 7/16″ |
Metric | 90° | M3: 6.94 mm, M10: 22.73 mm |
Note: Always check the hardware standard for your fastener. This ensures the countersink matches the screw head and provides a flush fit.
Quality Tips
You can achieve high-quality countersink holes by following industry benchmarks and quality control metrics. Use advanced inspection tools to check your work:
Technique | Description | Role in Quality Control |
---|---|---|
Probing Systems | In-machine measurement of hole diameter and position | Immediate adjustments for dimensional consistency |
Laser Measuring Systems | Non-contact measurement of depth, diameter, roundness | Early detection of deviations |
Bore Gauges | Portable measurement of internal diameter and taper | Quick on-site verification |
Coordinate Measuring Machines (CMM) | Automated 3D measurement of hole specifications | Post-machining inspection for accuracy |
Optical Measurement Systems | Non-contact capture of dimensions and surface finish | Detailed analysis for complex or fragile materials |
Closed-Loop Control Systems | Real-time monitoring of tool wear and cutting forces | Maintains consistency by adjusting parameters |
You should also pay attention to these best practices:
- Calibrate your tools regularly and use vibration-resistant holders.
- Adjust cutting speed and feed rate based on the material. For example, use 40-60 m/min for aluminum and 20-30 m/min for stainless steel.
- Apply the right coolant or lubricant. Water-soluble coolants work for metals, while oil-based lubricants suit high-strength alloys.
- Use stable clamping and ensure proper chip evacuation to prevent tool damage and maintain cutting efficiency.
- Program your CNC machine with the correct parameters. G82 code with dwell time helps control countersink depth and improves surface finish.
A statistically validated process flow for optimal countersink hole quality includes simulation, parametric analysis, and experimental validation. You can use finite element modeling to predict outcomes, adjust process parameters, and confirm results through experiments. This approach helps you optimize punch force, thickness distribution, and plastic deformation, especially in sheet metal and incremental forming.
Tip: Always inspect the finished countersink holes for roundness, depth, and surface finish. Early detection of defects saves time and material.
Standards and Drawings
Common Standards
You rely on international standards to ensure that countersink holes meet industry requirements. The most widely used standards are ANSI and ISO. ANSI standards guide you when working with imperial fasteners, specifying an 82° countersink angle. ISO standards apply to metric fasteners and use a 90° angle. These standards help you match the countersink to the fastener type, which ensures a flush fit and reliable assembly.
Technical drawings use the countersink symbol, which looks like a “V,” to indicate this feature. You often see this symbol next to the hole callout. The standards also require you to specify the countersink diameter, angle, and pilot hole diameter. This information helps machinists produce accurate parts. SAE J740 is another standard that covers countersunk square holes, especially for earthmoving machinery. By following these standards, you create parts that fit together correctly and perform as expected.
Standard | Application Area | Typical Angle | Notation Example |
---|---|---|---|
ANSI | Imperial fasteners | 82° | 0.375″ x 82° |
ISO | Metric fasteners | 90° | 10 mm x 90° |
SAE J740 | Earthmoving machinery | Varies | As specified |
Note: Always check which standard applies to your project before you start your design.
Specifying Countersinks
You need to provide clear and measurable details when you specify countersink holes in your engineering drawings. Start by matching the drawing dimensions to the actual part. Always include the countersink diameter and angle, and reference these to a datum for consistency. Use hole callouts to show the size and angle, such as “Ø10 mm x 90°,” so machinists know exactly what to create.
- List critical dimensions like diameter, angle, and depth.
- Add tolerances, such as ±0.2 mm, to define acceptable variation.
- Use the countersink (CSK) symbol or abbreviation in your callouts.
- Apply GD&T tolerances if you need precise control over position or alignment.
- Reference standards like ISO 2768 or ASME Y14.5 for dimensioning practices.
You improve manufacturing accuracy and reduce errors by specifying these features clearly. This approach also helps you balance precision with cost, since tighter tolerances can increase machining time. Always use standard dimensioning methods and avoid redundant details. When you follow these practices, your drawings communicate exactly what is needed for high-quality countersink holes.

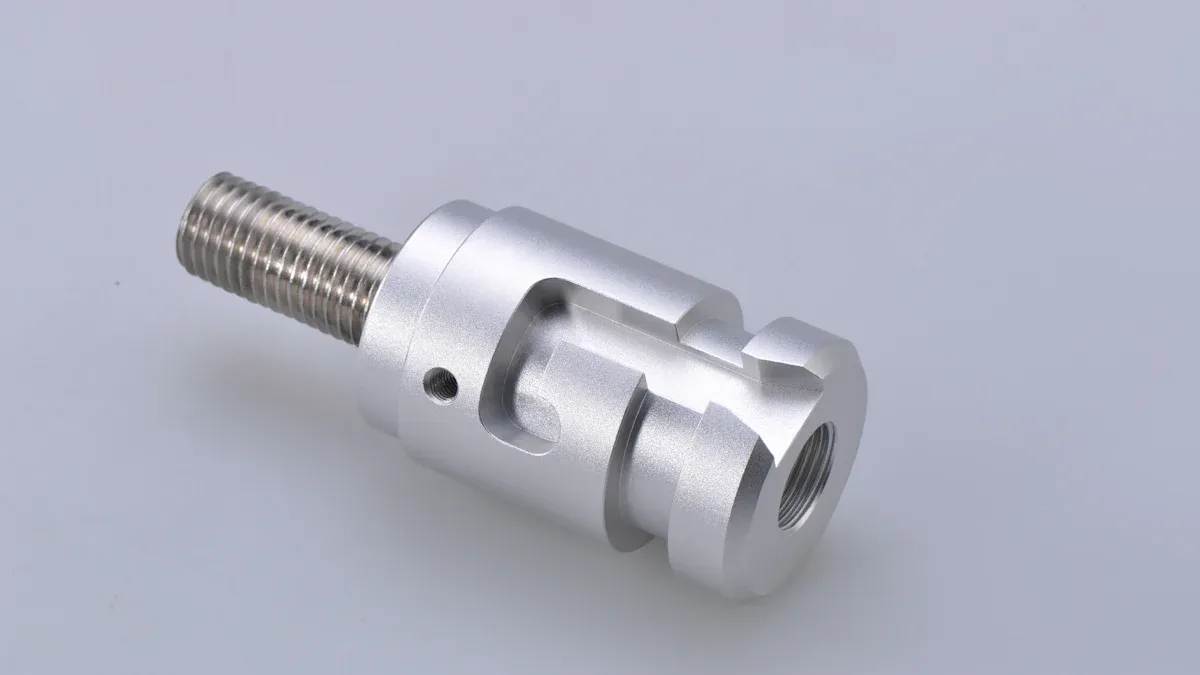

CNC Machining at VMT
You can rely on VMT for a wide range of CNC machining capabilities. VMT uses advanced CNC equipment to produce precise countersink holes and other complex features. You get access to multi-axis machining, which allows for intricate part geometries and tight tolerances. VMT machines work with many materials, including aluminum, stainless steel, brass, and engineering plastics. You can request both prototyping and full-scale production.
Frequently Asked Questions About Countersink Hole
What is the main purpose of a countersink hole?
You use a countersink hole to let a screw or bolt head sit flush with or below the surface. This design improves both the appearance and function of your part.
What types of fasteners require countersink holes?
You need countersink holes for flathead screws and some rivets. These fasteners have angled heads that fit into the conical recess, creating a smooth surface.
What angle should you choose for a countersink hole?
You select the angle based on your fastener. Most imperial screws use 82°, while metric screws use 90°. Always check your fastener’s specifications for the correct angle.
What happens if you use the wrong countersink angle?
You risk poor fit and weak joints. The screw head may not sit flush, which can cause stress, damage, or an uneven surface. Always match the angle to your fastener.
What tools do you need to create a countersink hole?
You use a countersink drill bit or a combined drill and countersink tool. CNC machines can also create precise countersink holes using programmed tool paths.
