with 15 years of experience, we provide custom cnc machining microscope parts with exceptional precision. our tight tolerance cnc machining ensures that every component meets the rigorous demands of advanced imaging systems and optical performance.
VMT has successfully partnered with over 150 specialized optical instrumentation companies to bring their complex designs to life. To date, we have delivered more than 50,000 oem optical instrument parts, including over 5,000 high-precision custom cnc machining microscope parts.
With 15 years of experience, we have manufactured compound microscope parts, light microscope parts, and compound light microscope parts. We also produce high-quality electron microscope parts, and microscope mechanical parts.
VMT offers a comprehensive range of manufacturing services, including CNC machining, swiss machining, wire edm, tapping and thread grinding, enabling us to support every stage of your spectrometer manufacturing process and ensure consistent quality from prototyping to mass production.
Leverage advanced 3- and 5-axis rapid machining technologies to achieve precision tolerances as tight as ±0.005 mm. With streamlined operations, we offer delivery times as fast as 1 day.
Specialized for micro-diameter parts of microscope, this process delivers extreme concentricity for adjustment shafts. It ensures the ultra-precise rotation and fit required for delicate microscope all parts.

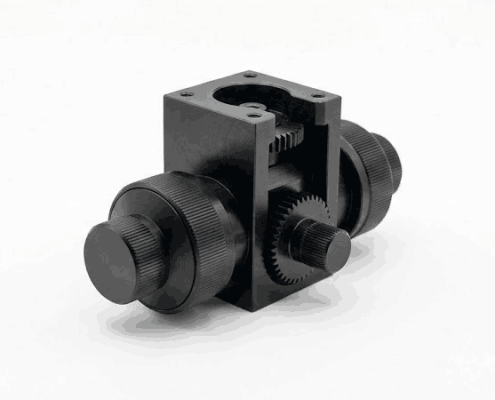

Providing high-precision threads for compound microscope parts interfaces, this technique ensures zero-play motion for focusing mechanisms. It creates reliable, smooth-operating connections for all microscope compound parts.
Ideal for intricate narrow slots and hard materials, wire edm creates complex geometries in microscope anatomy parts. It allows for high-precision internal features that conventional tools cannot achieve.
Common materials for microscope mechanical parts include aluminum alloys, stainless steel, brass, titanium, and engineering plastics. Aluminum is lightweight and ideal for frames of microscope components; stainless steel offers durability for parts of microscope; brass ensures smooth motion for microscope all parts; titanium provides thermal stability for microscope anatomy parts; and engineering plastics are used for holders of microscope compound parts due to low friction.
| Material | Grade / Alloy | Reason For Use | Typical Components |
| Aluminum | 6061, 7075, 6063 | Lightweight, high strength, easy to machine | Main frames, lens housings, camera adapters |
| Stainless Steel | 303, 304, 316 | Corrosion resistance, dimensional stability | Objective mounts, focusing shafts, mounting plates |
| Brass | C36000, C3602, C3604 | Low friction, smooth motion, wear resistance | Fine adjustment gears, threaded bushings, limit stops |
| Titanium | Grade 2, Grade 5, Grade 23 | Extreme strength-to-weight, thermal stability | Laser module holders, vacuum-stable clips, sensor mounts |
| Engineering Plastics | PEEK, POM, PTFE | Low friction, chemical resistance, insulation | Internal spacers, insulating rings, sliding bearings |
Before machining your microscope mechanical parts, our surface treatment engineers select the most suitable finishing method based on your specific optical requirements. We have provided surface finishing services for thousands of precision metal components. Common surface treatments for microscope components include matte black anodizing, laser engraving, and electroless nickel plating, while passivation, sandblasting, polishing, black oxide, and brushing ensure optimal performance for distinct parts of microscope.
For each order we receive, we tailor a comprehensive suite of quality inspection reports aligned with your specific processing needs.
Inspection Report:
As an experienced manufacturer specializing in on-demand CNC machined parts, we have the following certifications:
What are the 12 parts of a microscope?
The main microscope components include the Eyepiece, Body Tube, Arm, Base, Illuminator, Stage, Stage Clips, Revolving Nosepiece, Objective Lenses, Diaphragm, Coarse Adjustment Knob, and Fine Adjustment Knob. These parts function together to support the optical system and ensure clear magnification.
What are the 13 mechanical parts of a microscope?
Key microscope mechanical parts include the Base, Pillar, Arm, Inclination Joint, Body Tube, Draw Tube, Revolving Nosepiece, Coarse Adjustment Knob, Fine Adjustment Knob, Stage, Stage Clips, Rack Stop, and Condenser Holder. These structural elements provide the stability and precise alignment necessary for imaging.
Do you provide DFM support for complex microscope mechanical parts?
Yes, we offer free DFM analysis. Our engineers review your designs to optimize tolerances, ensuring perfect coaxiality and light-tightness for microscope mechanical parts. We suggest modifications to reduce machining costs while maintaining the strict precision required for high-end optical instruments.
Can you handle the assembly of microscope components?
Absolutely. We provide sub-assembly services for microscope components, such as installing threaded bushings, pressing in bearings, and assembling helical focusing mechanisms. We can also apply specialized optical greases to ensure the smooth, vibration-free operation of your mechanical assemblies.
How do you ensure the precision of microscope parts?
We utilize advanced CMM and video measuring systems. For critical parts of microscope, we focus on concentricity, roundness, and flatness to guarantee the optical axis remains perfectly aligned. We provide full inspection reports to verify that every dimension meets your exact specifications.
What is the lead time for custom microscope prototypes?
For custom microscope components, we can deliver rapid prototypes in as fast as 3-7 days. Our flexible production schedule allows us to quickly validate your designs, helping you accelerate product development and testing phases before moving to mass production.
Upon receiving your 3D CAD file, our dedicated customer service engineer will thoroughly review your design for manufacturability, ensuring it meets your precise specifications and budget requirements. Contact us today for a free quote!
