How to ensure batch consistency for cnc machined cylinder head parts?
The verification of cnc machined cylinder head parts is conducted within a strictly controlled IATF 16949:2015 quality management system to ensure that every batch meets rigorous automotive standards. To support material integrity, we perform comprehensive validation including spectrometer analysis to confirm chemical composition. When specified by customer requirements, we coordinate non-destructive testing (NDT), such as ultrasonic or dye penetrant inspection, to identify any subsurface porosity in the A356-T6 substrate that could compromise performance under cyclic thermal loading.
During the CNC process, we prioritize geometric consistency through simultaneous 5-axis machining. By utilizing in-process probing to monitor critical datum positions, we adjust work offsets to counteract thermal drift, ensuring that valve seat concentricity and guide bore alignment remain within the tight tolerances defined in your engineering drawings. This process-oriented approach supports the PPAP (Production Part Approval Process) requirements, providing the stability and repeatability essential for OEM-tier supply chains.
Final validation is performed using automated Coordinate Measuring Machines (CMM) and leak testing when required by customer specifications to verify the integrity of internal galleries. By maintaining a high CPK/PPK threshold for critical-to-quality (CTQ) dimensions, we provide a data-driven guarantee that every cylinder head assembly delivers the functional reliability and fatigue resistance required for demanding automotive environments.
Why is DFM vital for manufacturing cnc machined cylinder head parts?
DFM is vital for manufacturing cnc machined cylinder head parts because it bridges the gap between complex engine design and cost-effective production. By conducting a thorough DFM review, we can identify potential machining challenges in the combustion chambers and intake ports, such as deep, narrow cavities that require specialized long-reach tooling. This allows for the optimization of tool paths to minimize tool deflection and chatter, ensuring that critical-to-quality dimensions remain within the tight tolerances defined in the engineering drawings without compromising the structural integrity of the component.
Furthermore, DFM helps to streamline the 5-axis machining process for cnc machined cylinder head parts by optimizing part orientation for maximum feature access in a single setup. This is essential for maintaining the coaxiality of valve seats and guide bores while reducing the cumulative errors associated with multiple re-clampings. By addressing manufacturability early, we can support consistent wall geometry for machining stability and structural integrity, while eliminating unnecessary machining complexities. This proactive approach significantly reduces cycle times and scrap rates, providing the process stability and repeatability required for demanding automotive engine applications within an IATF 16949 certified framework.
What are the parts of a cylinder head?

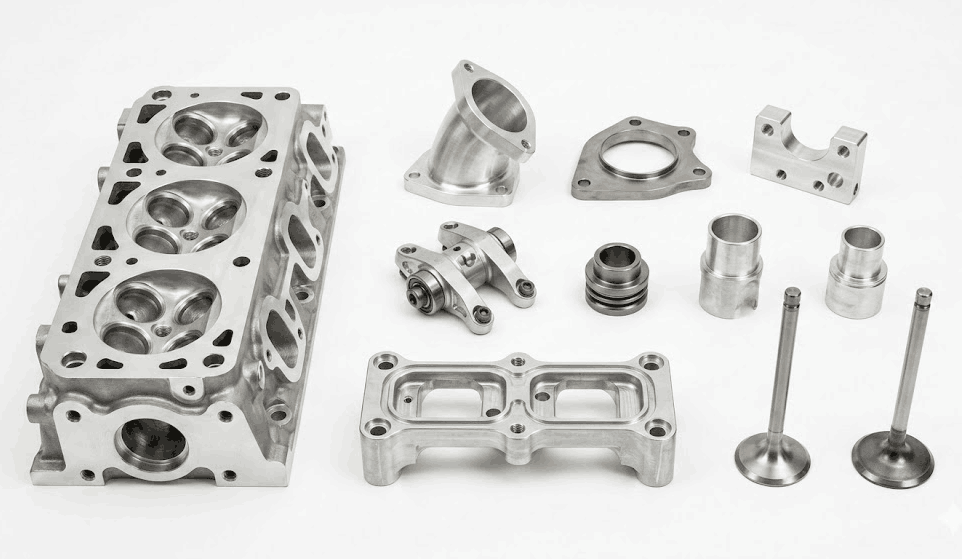

The cylinder head is a complex assembly that serves as the structural core for engine combustion and airflow management. It primarily consists of the cnc machined cylinder head parts such as intake and exhaust ports, which act as internal passages for air and gases, and the combustion chamber where fuel ignition occurs. Within this structure, precision-fitted valve seats and guides ensure proper sealing and linear movement of the intake and exhaust valves. Additionally, the head features integrated spark plug or injector ports, alongside a sophisticated network of coolant passages and oil galleries designed to maintain thermal stability and lubrication across the entire engine assembly.
