What Is Taper? Work, Types, and Uses

Struggling to achieve optimal mechanical precision and reliability? Tapers are essential in ensuring secure fits and seamless connections in manufacturing. Discover how they work and their various applications.

A taper is a gradual decrease in width, thickness, or diameter along a component’s length, widely used in CNC machining and engineering designs. By enabling precision fits, minimizing stress points, and enhancing durability, tapers are vital across automotive, aerospace, and industrial applications.

Let’s explore the essential details of tapers, their types, and why they are indispensable in modern manufacturing.

What Is a Taper? Understanding the Basics

A taper is the reduction in a component’s dimension over a specific length, often used to create secure, precision fits in machinery. It is most commonly seen in mechanical parts like shafts, holes, or pipe connections. Tapers can either be internal, such as in the bore of a machine part, or external, such as on a shaft.

Tapers enhance structural integrity by evenly distributing loads across the joint. Unlike cylindrical fits, which rely on friction alone, tapered joints provide additional mechanical locking, preventing unwanted slippage or detachment under stress. This makes them indispensable in high-performance and high-precision industries.

What Is the Purpose of Taper in Machining?

Tapers play a crucial role in ensuring the functionality and reliability of machined components. Their primary purpose is to create secure, tight connections between parts, which are essential for mechanical stability. By using tapered designs, engineers can ensure that components fit precisely and remain firmly in place, even under demanding conditions.

Another significant advantage of tapers is their ease of disassembly. Unlike press-fit joints, which can be challenging to separate without causing damage, tapered connections allow for simple removal and reassembly. This feature is particularly useful in systems that require regular maintenance or part replacement.

Tapers also excel at distributing loads evenly across their contact surfaces. By minimizing stress concentrations, they help reduce material fatigue, enhancing the durability and lifespan of mechanical systems. This makes them ideal for applications where components are subjected to high stress or vibration.

Additionally, tapers simplify the alignment process during assembly. Their gradual narrowing design ensures that mating parts naturally align as they are joined, which is especially critical in systems requiring precise configurations.

How Does a Taper Work?

Tapers operate by creating a gradual change in dimension along the length of a component. This design allows for secure, friction-based fits or locks, making them essential for many mechanical systems. The taper’s geometry is key to its functionality, as it ensures components fit together tightly and securely.

One important factor is the contact area. A taper’s angle is calculated to maximize surface contact between two parts, which increases the overall strength of the connection. This minimizes the risk of slippage or failure under stress.

Another principle at play is the wedge effect. As one tapered part fits into another, the narrowing geometry acts like a wedge, locking the parts firmly in place. This is particularly effective for joints subjected to dynamic loads or vibrations.

Precision in taper design relies on proper calculation. The formula for taper, $(D-d)/L,$where $D$ is the larger diameter, $d$ is the smaller diameter, and $L$ is the taper length, ensures exact dimensions for optimal performance. Accurately calculated tapers prevent stress concentrations and promote smooth operation, even in high-speed or high-pressure environments.

Types of Tapers

Tapers are classified into several types, each serving specific industrial purposes.

Conical Tapers

These are the most common type, featuring a uniform, conical shape. Conical tapers are widely used in machine tools, shafts, and rotating machinery. Examples include Morse tapers, which connect drill press spindles, and Jacobs tapers, commonly used for drill chucks.

Tapered Threads

Tapered threads are designed to form tight, leak-proof seals in piping systems under pressure. Common examples include NPT (National Pipe Thread) and BSP (British Standard Pipe), both of which are critical in fluid and gas transfer systems.

Gear and Axle Tapers

Tapers in gear and axle applications provide stability and ensure secure attachments for wheels and gears. These tapers are particularly important in automotive and heavy machinery, where dynamic forces must be managed effectively.

Specialized Tapers

Some tapers are custom-designed for niche industries. For example, precision optical devices or surgical instruments often use specialized tapers for enhanced performance and reliability.

What Is the Difference Between Taper and Taper Turning?

The terms taper and taper turning refer to related yet distinct concepts in machining.

Taper describes a geometric feature, characterized by a gradual reduction in diameter or thickness. Tapers are integral to engineering designs and enhance the functionality of various mechanical components.

Taper Turning, on the other hand, is a machining process used to create the taper geometry on a workpiece. This process is typically performed on a lathe, where the tool post or tailstock is adjusted to achieve the desired taper angle.

Modern CNC machines simplify taper turning, allowing machinists to create precise and complex tapers automatically. This automation ensures consistency and accuracy, particularly for high-performance components.

By understanding the difference, machinists and engineers can choose the appropriate technique or process for their specific requirements.

Where Is Taper Used?

Tapers are ubiquitous in modern engineering due to their versatility and mechanical advantages.

Aerospace:

Aerospace applications rely heavily on tapers for their precision and strength. For instance, turbine shafts in jet engines incorporate tapers to ensure reliable and secure connections under extreme conditions.

Automotive:

In the automotive industry, tapers are used in components such as axles, bearings, and crankshafts. These parts require durable, vibration-resistant connections to maintain vehicle safety and efficiency.

Medical:

The medical field benefits from tapered designs in tools and implants. High-precision tapers ensure secure fittings for surgical instruments and prosthetics, which demand utmost reliability.

Industrial Equipment:

For industrial equipment, tapers provide the strength needed to handle dynamic forces in heavy machinery. These joints are crucial for maintaining operational stability in demanding environments.

Is a Lathe Machine Used for Tapering Materials?

Yes, lathe machines are among the most common tools for tapering materials. By modifying the tool’s position or angle, machinists can create precise tapers suitable for various applications.

One popular method is the compound rest method, where the compound slide is adjusted to the required taper angle. This technique is ideal for producing small, accurate tapers. For longer tapers, the tailstock setover method is often used. By shifting the tailstock slightly off-center, machinists can achieve a gradual dimensional change over the length of the workpiece.

Another option is the taper attachment, a specialized lathe component that allows for consistent taper production without manual adjustments.

For more intricate or high-precision tapers, CNC machines provide automated solutions. These machines ensure minimal human error and exceptional accuracy, especially for complex taper designs in critical industries like aerospace or medical manufacturing.

Selecting the Right Taper for Your Needs

Choosing the right taper involves evaluating several factors to ensure optimal performance:

1. Material Properties

Different materials, such as steel, aluminum, or composites, respond differently to stress. Selecting a taper that complements the material’s characteristics is crucial for durability.

2. Angle Precision

Even slight deviations in taper angles can compromise the fit or structural integrity. High-precision machining ensures that angles are accurate and meet specific requirements.

3. Application Requirements

Consider the operational environment, load distribution, and assembly conditions when selecting a taper. For example, high-speed machinery may require a more durable taper than static components.

VMT’s Expertise in High-Precision Taper Machining

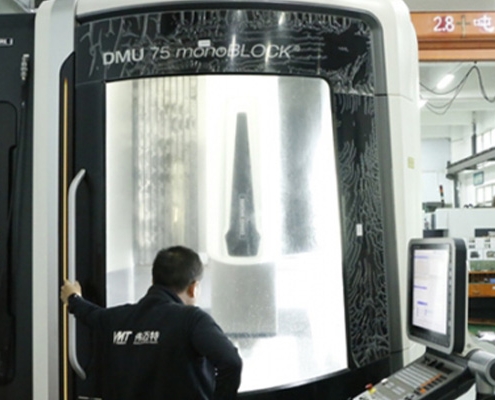

VMT specializes in manufacturing high-precision tapers that meet rigorous industrial requirements. Leveraging advanced 4-axis and 5-axis CNC machines, we achieve remarkable accuracy with tolerances down to 0.01 mm, ensuring efficiency and precision.

Our expertise caters to crucial applications across industries like aerospace, automotive, and medical. In addition to precision machining, we offer professional surface treatments to guarantee each component is suitable for high-performance applications.
